صمامات التحكم

It depends on your plant infrastructure and safety requirements:

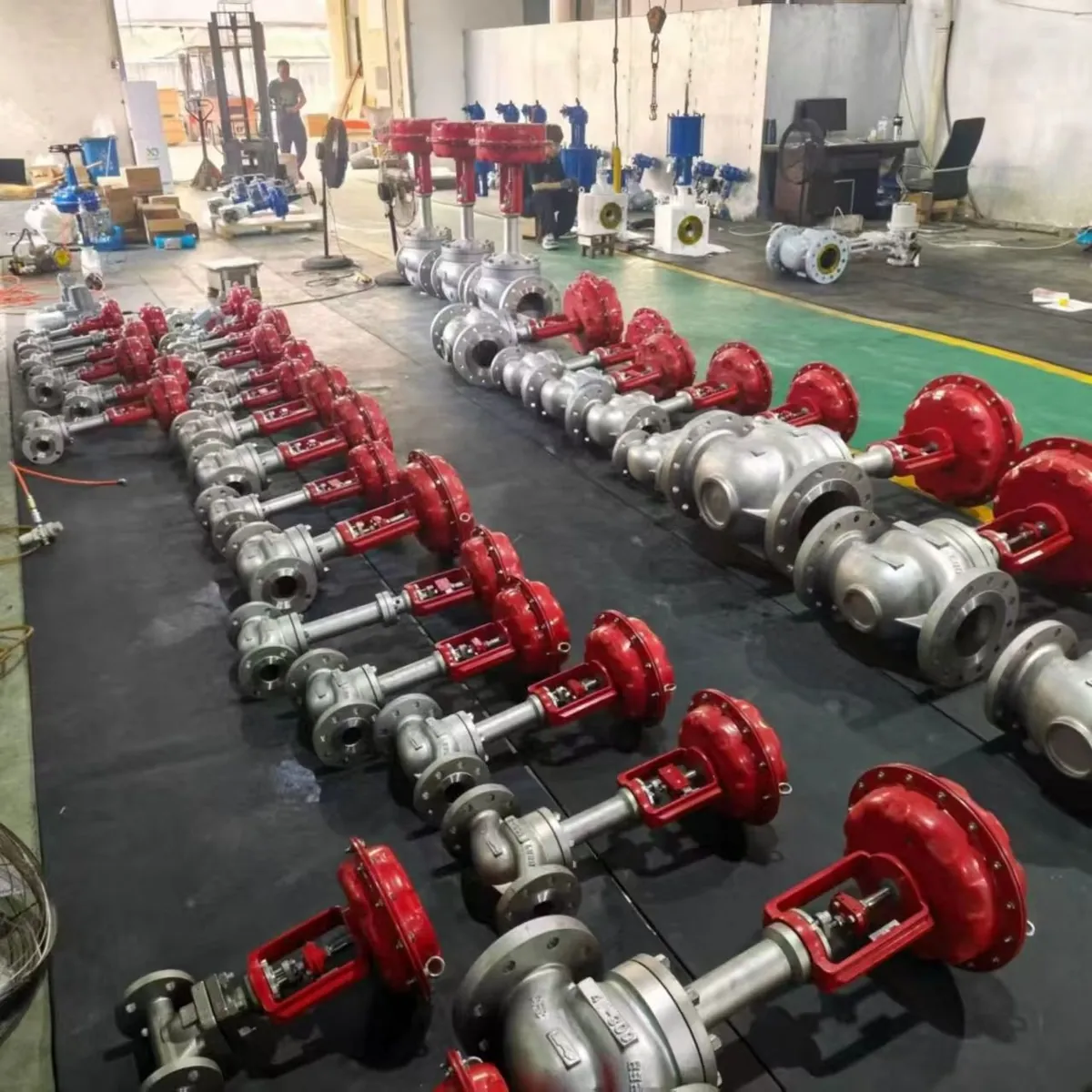

هوائي (diaphragm): Preferred for hazardous areas (ATEX/Exd), intrinsically safe, fastest response (sub-second), lowest lifecycle cost, natural fail-safe via spring. Requires instrument-quality air supply (4–8 bar, filtered/dry).

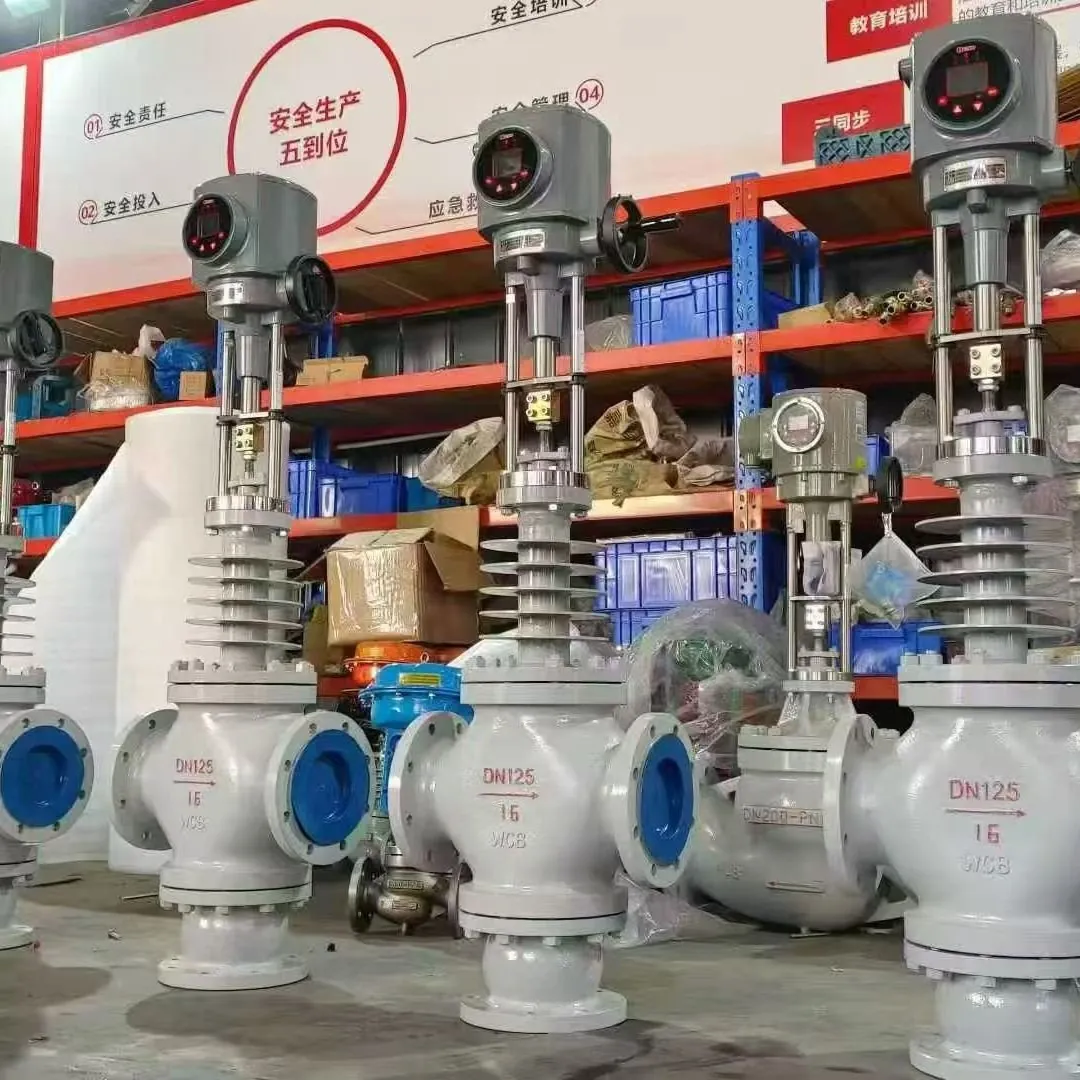

كهربائي: No compressed air needed, good for remote locations without air headers, precise positioning with servo motor. Slower stroking time (10–30 sec typical), higher upfront cost, fails in last position unless battery backup added. Ideal for HVAC and non-critical process applications.

A cage-guided valve has the plug guided by a cylindrical cage containing the seat and flow passages. Benefits: (1) Plug stays centered even under high pressure drop, preventing vibration and premature wear. (2) The cage shape determines the flow characteristic (linear, equal-%, quick-open) independently of the plug profile –easy to change by swapping cages. (3) Multi-stage cages distribute pressure drop in stages to eliminate cavitation damage and reduce aerodynamic noise. This makes cage-guided valves the go-to choice for high-ΔP liquid and gas applications.

Standard analog: 4–20 mA DC input/output (with HART superimposed on same wires). Digital protocols: HART 7 (point-to-point digital), Foundation Fieldbus H1, Profibus PA. Discrete I/O: limit switch feedback (open/closed), solenoid valve drive (ESD trip). For legacy systems, 0–10V DC and 3–15 psi pneumatic positioners are also available on request.

Cv is the flow coefficient: the number of US gallons per minute of water at 60°F that will pass through the valve with a 1 psi pressure drop. To size: determine max required flow (Q), specific gravity (SG), and allowable pressure drop (ΔP), then calculate Cv = Q × √SG/ΔP). Select a valve whose rated Cv at 60–80% travel meets this value (don't operate wide-open or near-closed for control stability). Send us your data sheet and we'll verify sizing and recommend the optimal valve-trim combination.

Yes, but it requires careful sizing. Two-phase flow causes flashing and cavitation that destroy standard trims within weeks. Solutions: (1) Anti-cavitation multi-stage trim that drops pressure in steps. (2) Hardened trim materials (Stellite, ceramic). (3) Angle valve configuration to separate phases. (4) Flashing service requires hardened outlet body and possibly downstream restriction orifice. Tell us your phase conditions and we'll engineer the appropriate solution.

In clean service (air, steam, water): 12–24 months for packing inspection/replacement, 2–4 years for full overhaul. In severe service (slurry, corrosive, high-cycle): 3–6 months for trim inspection. Smart positioners with diagnostic alerts can detect degradation early (increased friction, stiction, deviation) and schedule maintenance proactively rather than reactively. We provide spare parts kits (trim sets, packing, bellows, diaphragms) for all models to minimize downtime during planned turnarounds.

Yes. We offer IEC 61508-compliant control valves rated for SIL 2 and SIL 3 applications. This includes: certified partial-stroke testing (PST) in the positioner, documented failure rate data (PFDavg, SFF), diagnostic coverage percentage, redundant position sensing, and third-party functional safety assessment. Commonly used for emergency shutdown (ESD) valves, HIPPS (high-integrity pressure protection), and burner management systems.
