Reguvale pneumatic triple-eccentric flange butterfly valve with hard metal-to-metal seat, zero leakage at shut-off, suitable for high-temperature / high-pressure / clean service. ISO 5211 top flange for pneumatic actuator mounting. DN50–DN1200, PN16/PN25/PN40/ANSI 150LB. ISO 9001 & SGS certified.
Reguvale supplies this valve from our Tianjin factory with full material traceability, pressure testing and FOB-quoted pricing. The hard-faced seat handles high-temperature steam, hot oil, gas and abrasive service where soft seats would fail. Available with double-acting or spring-return pneumatic actuator, plus complete accessories (solenoid valve, limit switch, positioner, FRL). OEM/ODM body color and branding available.
Request Quote → View All Products →Triple-offset disc-to-stem-seat geometry eliminates metal-to-metal contact at full open/close, achieving zero friction and Class V zero-leakage shut-off.
Stellite / alloy overlay seat withstands high temperature (+425°C), high pressure and abrasive media without galling or wear.

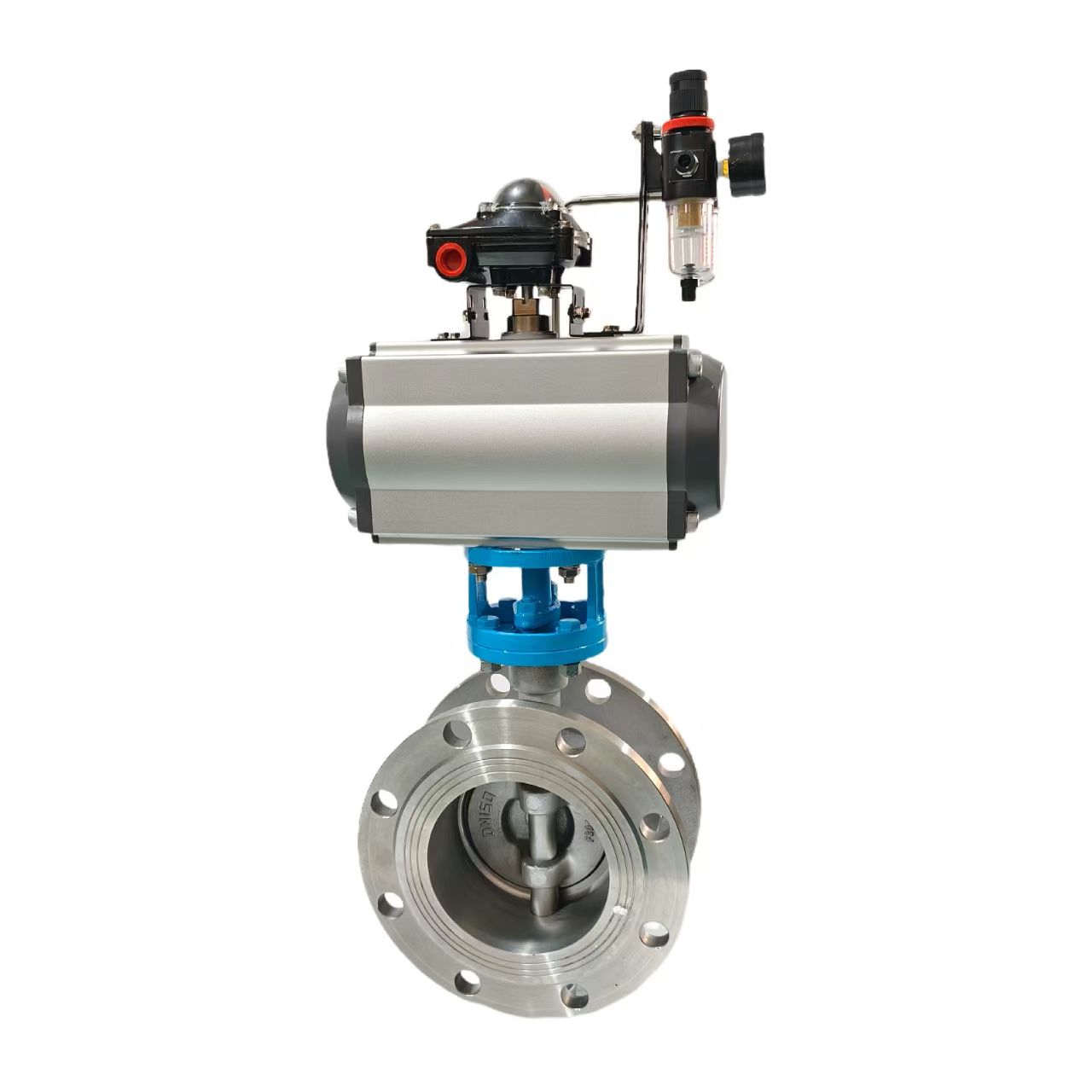

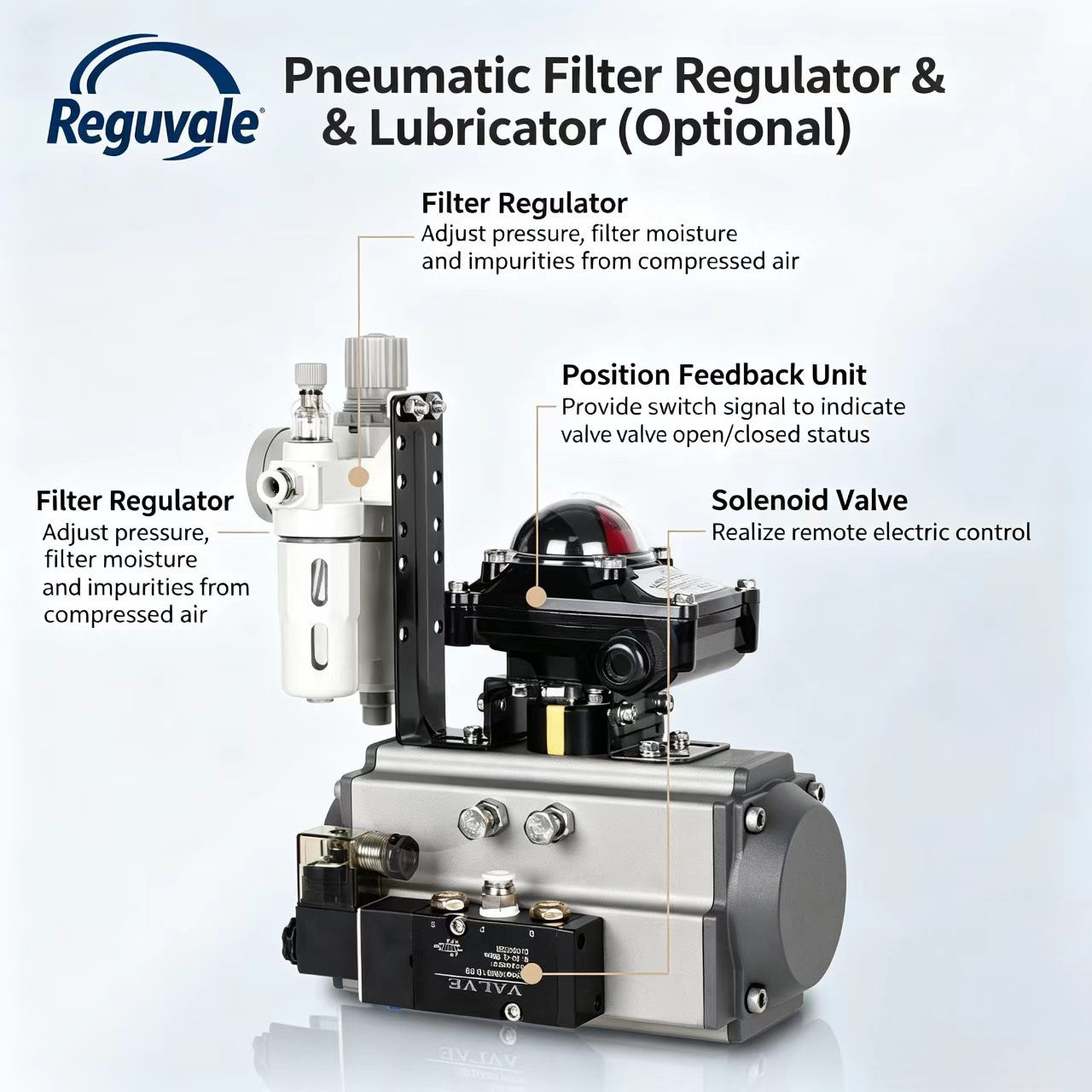

ISO 5211 top flange accepts AT / AW series pneumatic cylinder. Optional 5/2 solenoid valve, limit switch, positioner and air filter regulator.
| Body Material | Carbon Steel WCB / Stainless Steel CF8/CF8M / Ductile Iron |
| Disc (Butterfly Plate) | Stainless Steel 304 / 316 / Duplex / Stellite Overlay |
| Seat / Sealing | Metal-to-Metal Hard Seal (Stellite) / PTFE optional |
| Design Type | Triple-Eccentric (zero friction at full open/close) / Concentric Double-Offset |
| Size Range | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN10 / PN16 / PN25 / PN40 / ANSI 150LB / 300LB |
| End Connection | Double Flanged (ANSI / DIN / JIS / BS) |
| Operation | Pneumatic Cylinder (AT / AW series) — Double-Acting or Spring-Return |
| Actuator | ISO 5211 top flange mounting; solenoid valve + limit switch + positioner + air filter regulator optional |
| Temperature | Metal seat: -29 → +425°C | PTFE: -20 → +180°C |
| Leakage Class | Class V (Metal seat, ANSI FCI 70-2) / Class VI (PTFE seat) |
| Application | Steam, Hot Oil, Gas, Air, Dry Bulk, Chemical, Power Plant |
| Certification | ISO 9001:2015, SGS Material Test Certificate |
| MOQ | 1 Piece |
A triple-eccentric butterfly valve uses three offset axes (disc centerline, seat centerline, and stem axis) so the disc contacts the seat only at the closing moment — not during opening. This eliminates seat wear and achieves bidirectional zero-leakage shut-off, suitable for high-temperature steam, hot oil and clean gas service.
With metal seat: up to PN40 / ANSI 300LB and +425°C. With PTFE seat: up to PN16 and +180°C. Beyond this, please contact us for high-performance series.
Yes. We supply the complete package: valve + pneumatic actuator + solenoid valve + limit switch + positioner + air filter regulator, fully assembled, tested and ready to install.
