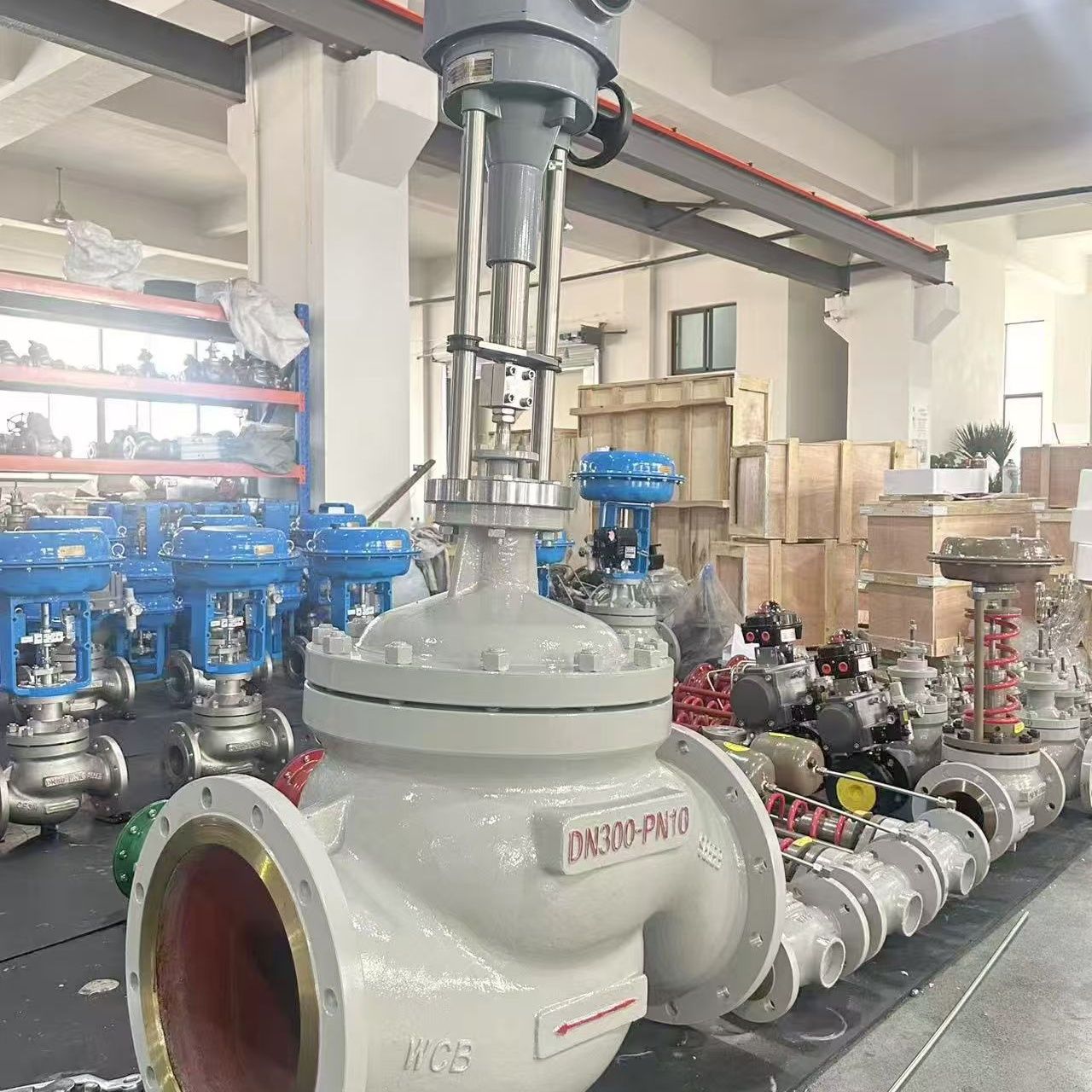

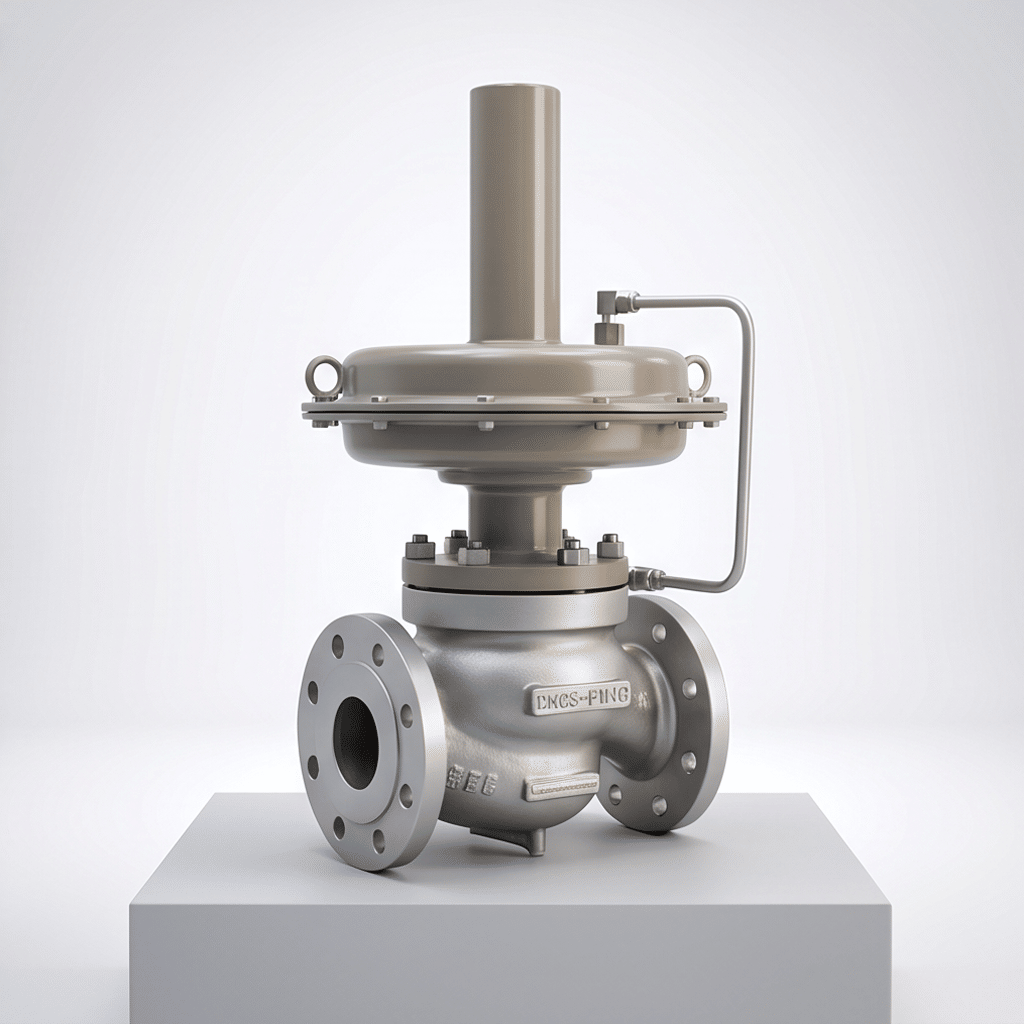

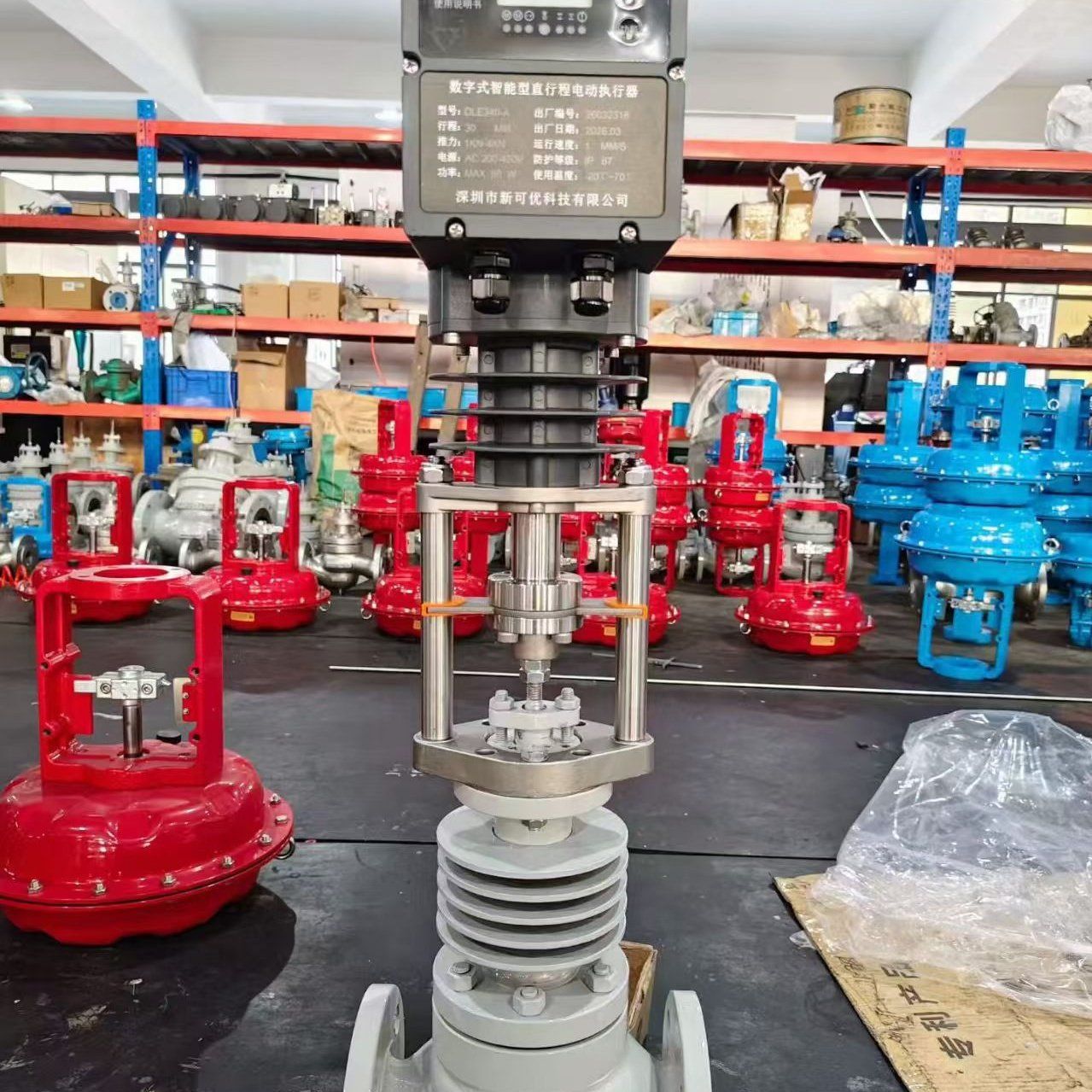

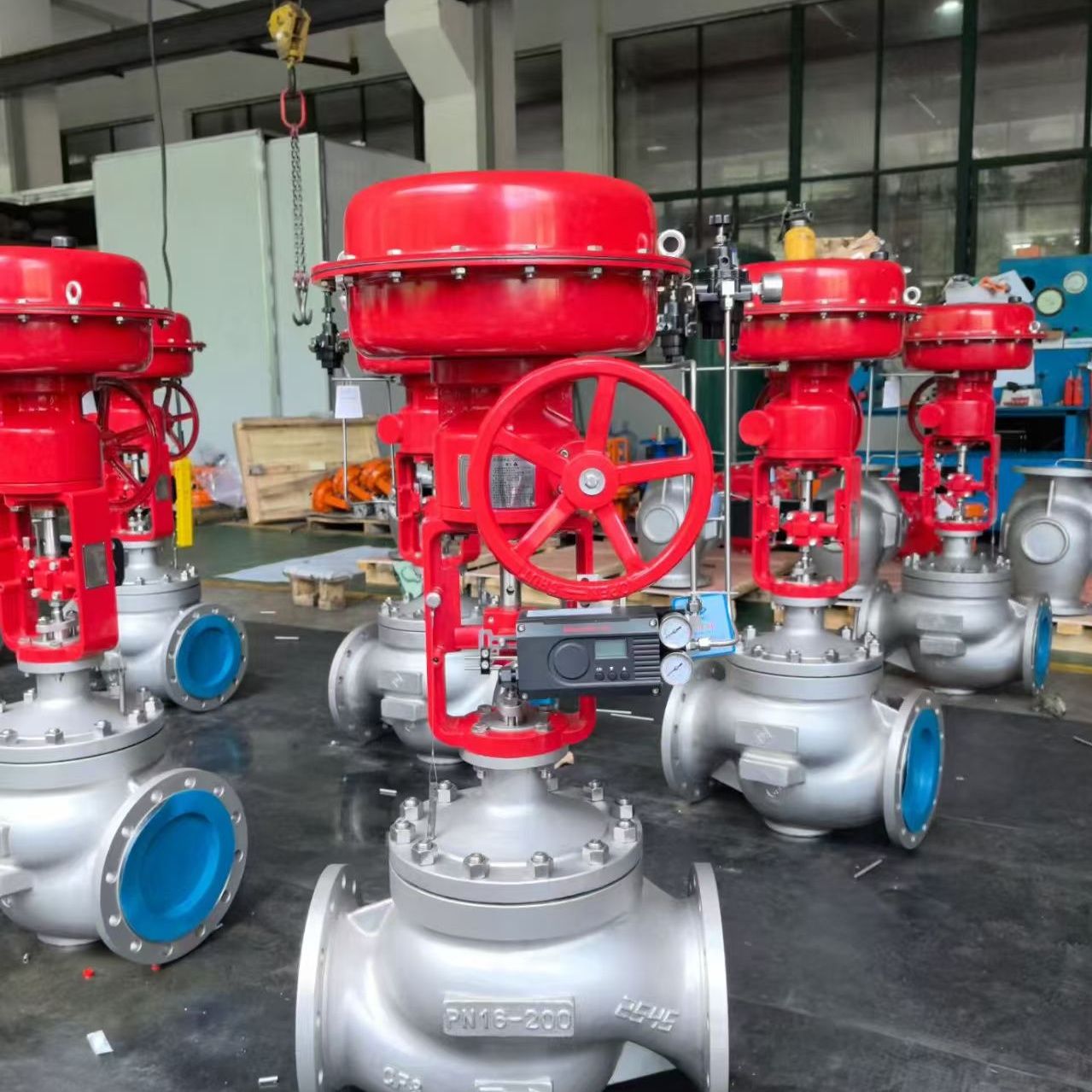

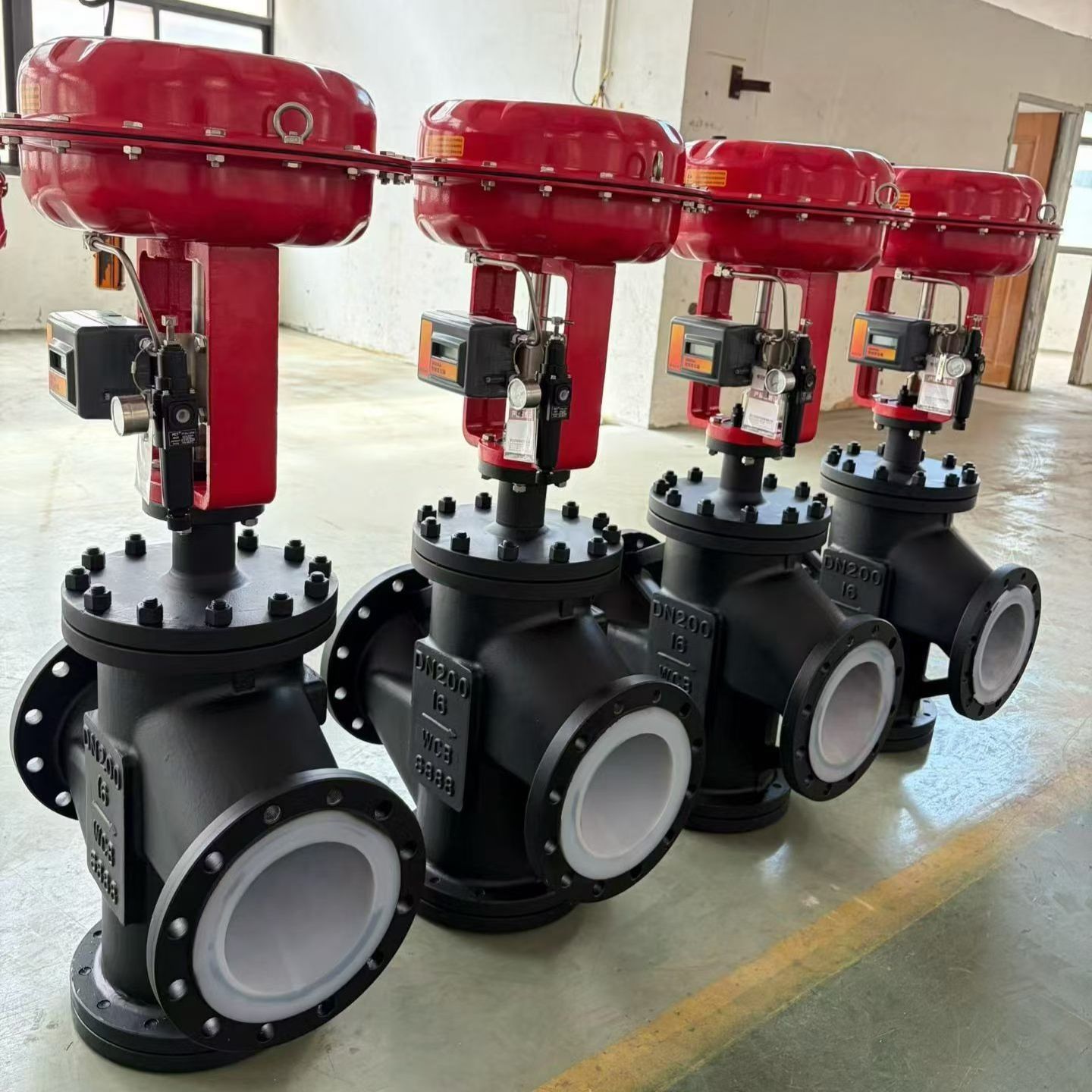

Smart Positioner Digital Control Valve
4-20 mA + HART · DN25–DN300 · PN16 · Auto-Calibration
Reguvale's smart positioner digital control valve pairs a high-performance globe or cage-trim body with a microprocessor-based smart digital positioner for the most accurate modulating duty. The positioner reads the actual stem position, compares it to the 4-20 mA setpoint, and drives the actuator with closed-loop PID to deliver ±0.5% linearity.
Available positioners include pneumatic YT-1000 / YT-1050 and smart digital units supporting 4-20 mA, HART, Profibus PA or Foundation Fieldbus. Auto-calibration, auto-tuning and partial-stroke test routines reduce commissioning time and enable predictive maintenance. SS316 trim and PTFE or metal seats cover most chemical service.
Standard sizes DN25–DN300 in PN16 are available; higher pressure ratings and exotic alloys are quoted on request.
Key Features
Closed-Loop Accuracy
Internal position feedback delivers ±0.5% linearity across the full stroke, regardless of packing friction or process pressure changes.
Auto-Calibration
One-button auto-cal routine captures zero, span, direction and tight-shutoff parameters in under two minutes.
HART / Profibus / FF
Smart positioner modules support HART 6/7, Profibus PA and Foundation Fieldbus for seamless DCS integration.
Partial-Stroke Test
On-demand partial-stroke test routines support the proof-test regime your safety function requires. SIL capability follows from a third-party assessment of the complete loop — tell us the target SIL and who is assessing the loop, and we will confirm what is available before you commit.
Diagnostic Data
Continuous monitoring of cycles, travel, temperature and pneumatic pressure flags seat wear and packing leaks before they cause trip events.
Local Hand-Held
Plug-in local communicator or HART handheld configures, calibrates and diagnoses without opening the enclosure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Body Material | WCB Carbon Steel / SS304 / SS316 / Ductile Iron GGG50 |
| Plug / Trim | SS316 / 17-4PH / Stellite Faced |
| Seat Material | PTFE / Metal / EPDM / NBR |
| Body Type | Globe, single-seat or cage-guided |
| Size Range | DN25 – DN300 (1" – 12") |
| Pressure Rating | PN16 (ANSI 150 / 300 on request) |
| End Connection | Flanged (ISO 7005-2 / ASME B16.5) |
| Flow Characteristic | Equal-Percentage / Linear / Custom curve |
| Positioner Type | Pneumatic YT-1000 / YT-1050 / Smart digital |
| Control Signal | 4-20 mA / 0-10 V / HART / Profibus / FF |
| Communication | HART 6/7, Profibus PA, Foundation Fieldbus |
| Accuracy | ±0.5% of full stroke |
| Diagnostics | Cycle count, travel histogram, PST, FST |
| Power | Loop-powered (HART) or 24 VDC |
| Temperature | PTFE seat: -40→+180°C | Metal seat: -40→+425°C |
| Standards | Design reference: IEC 60534 / ANSI/ISA-75 / GB/T 4213 |
| Certification | ISO 9001:2015 · SGS-CSTC factory audit report (on request) · EN 10204 3.1 mill certificate per batch. We do not hold SIL certification. |
Frequently Asked Questions
What is the advantage of a smart digital positioner?
It reads actual stem position, compares it to setpoint, and drives the actuator with closed-loop PID for ±0.5% accuracy - much tighter than a conventional I/P converter. It also provides HART diagnostics and SIL partial-stroke testing.
Can I use my existing YT-1000 or YT-1050 with the smart option?
Yes. The YT-1000 and YT-1050 pneumatic positioners are fully compatible with the same mounting bracket and signal range as the smart digital modules.
Does the smart positioner support HART and Profibus?
Yes - smart digital modules support HART 6/7 (default), Profibus PA and Foundation Fieldbus. The protocol is set in the firmware; the same hardware accepts all three.
Applications & Use Cases
Refinery & Petrochemical
FCCU, hydrocracker and ethylene furnace pass-and-bleed control with HART feedback to DCS.
Power Generation
Boiler feedwater, superheat spray and turbine bypass control with SIL-2 partial-stroke testing.
Chemical & Pharma
Reactor temperature and feed-ratio control where closed-loop accuracy matters.
Oil & Gas
Wellhead flow control, separator pressure and custody-transfer skid duty.
