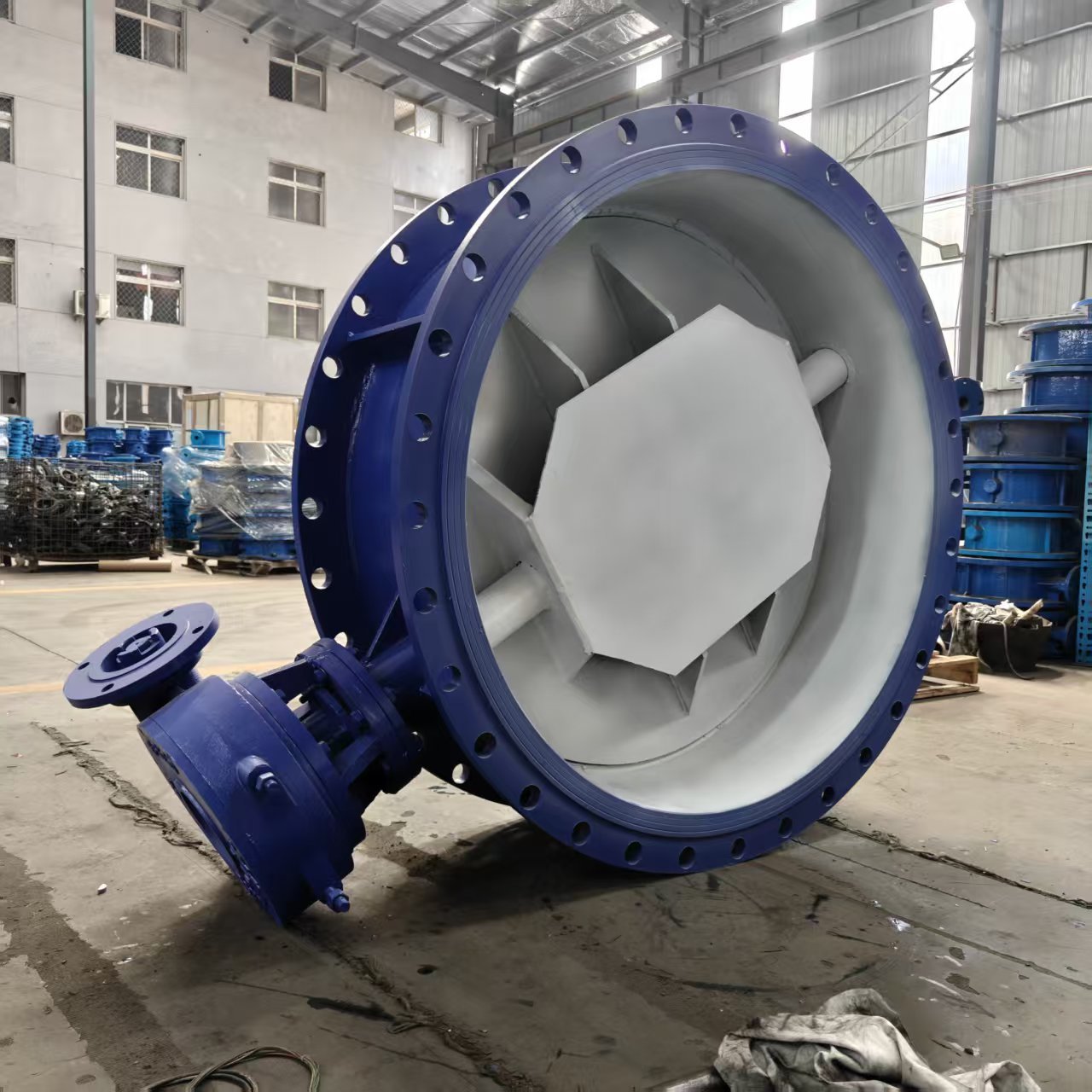

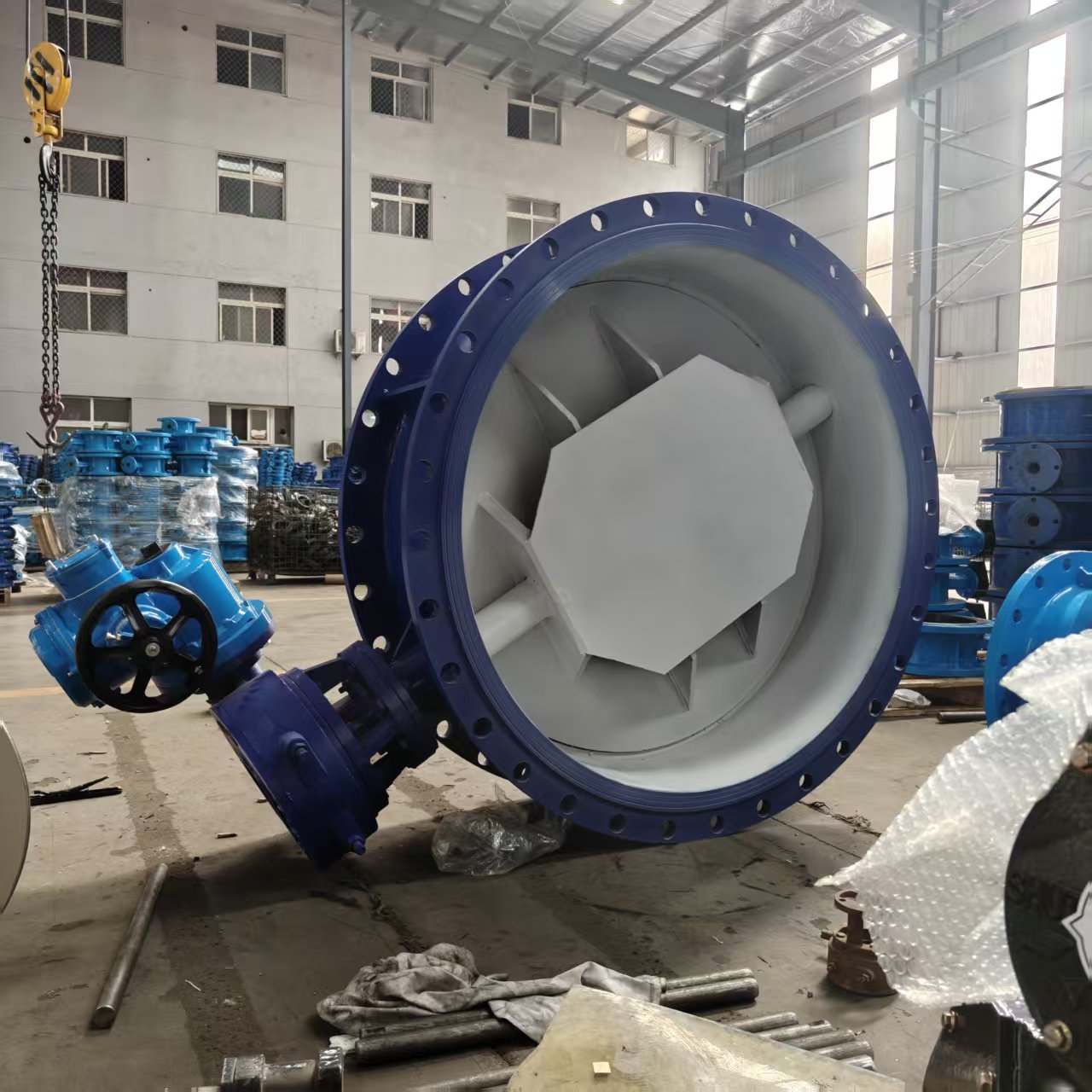

Electric Actuated Flanged Butterfly Valve
Double Flanged · Electric Actuated · PN10/16 · Ductile Iron
Reguvale's Electric Actuated Flanged Butterfly Valve is a robust double-flanged butterfly valve designed for on/off isolation and modulating flow control in pipelines up to PN16. The valve is fitted with a reliable multi-turn electric actuator that accepts on/off or 4-20mA modulating signals, with a handwheel for manual override.

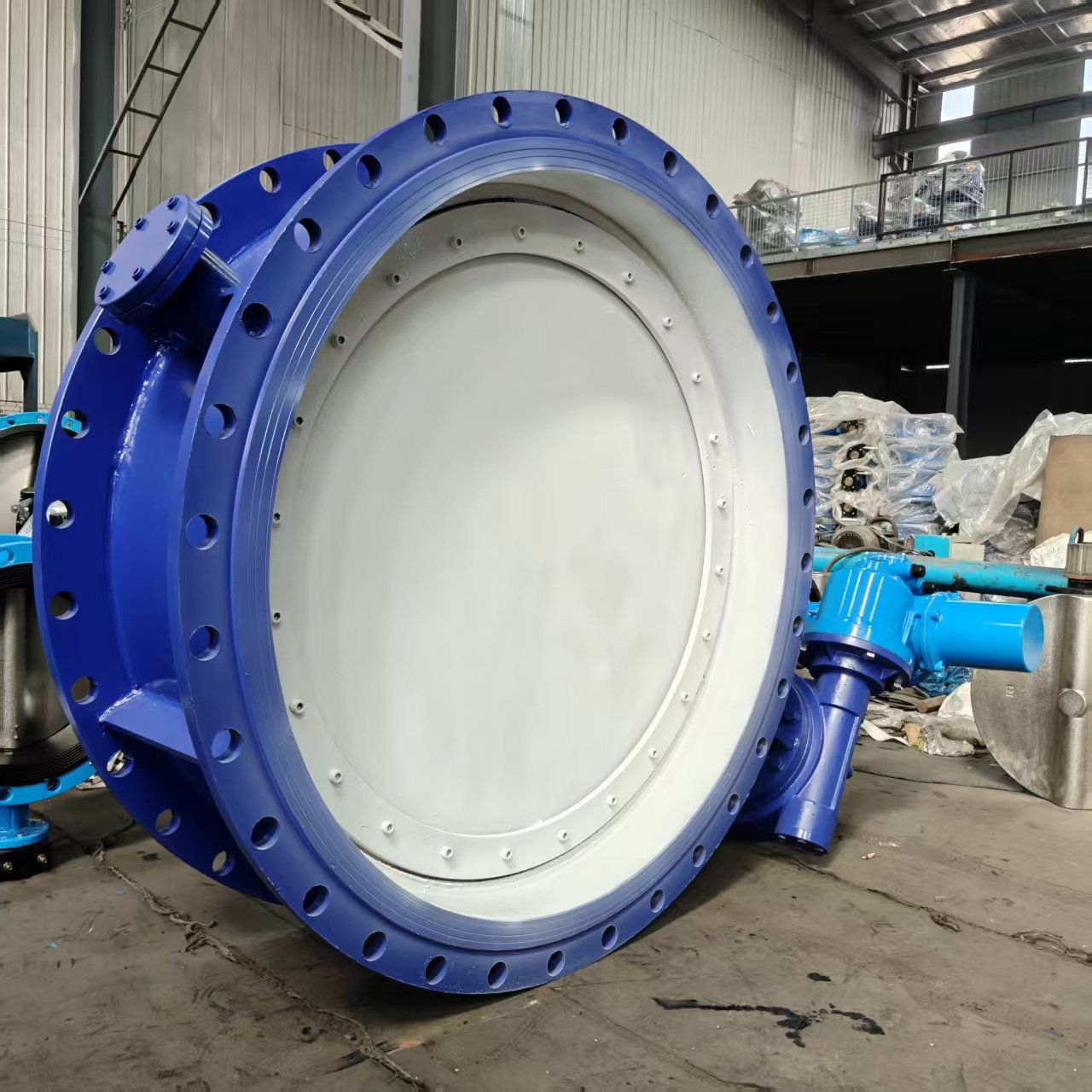

The body is ductile iron GGG50 with epoxy coating, the disc is SS304 (SS316 and duplex options available), and the seat is replaceable EPDM/NBR/Viton to match the medium. The double-flanged design allows direct mounting between PN10/PN16, ANSI 150, and JIS 10K flanges without extra adapters. Each valve is assembled and pressure-tested at our Tianjin factory before shipment.
Actuator voltage (24VDC / 110VAC / 220VAC / 380VAC), control type (on/off or modulating), and feedback options can be configured to suit your automation system.
Product Video
Electric Actuated Flanged Butterfly Valve - factory overview and actuator details.
Key Features

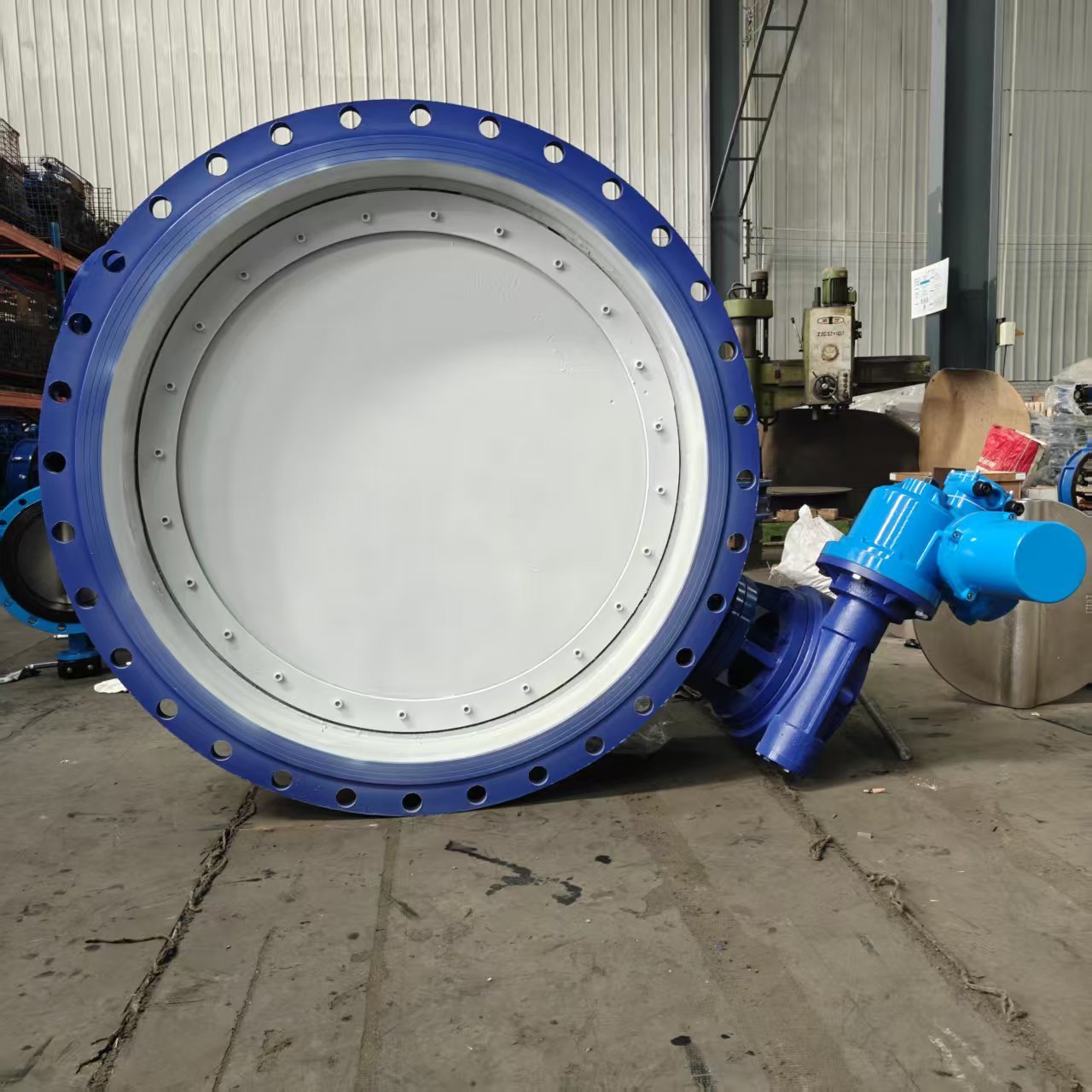

Electric Actuation

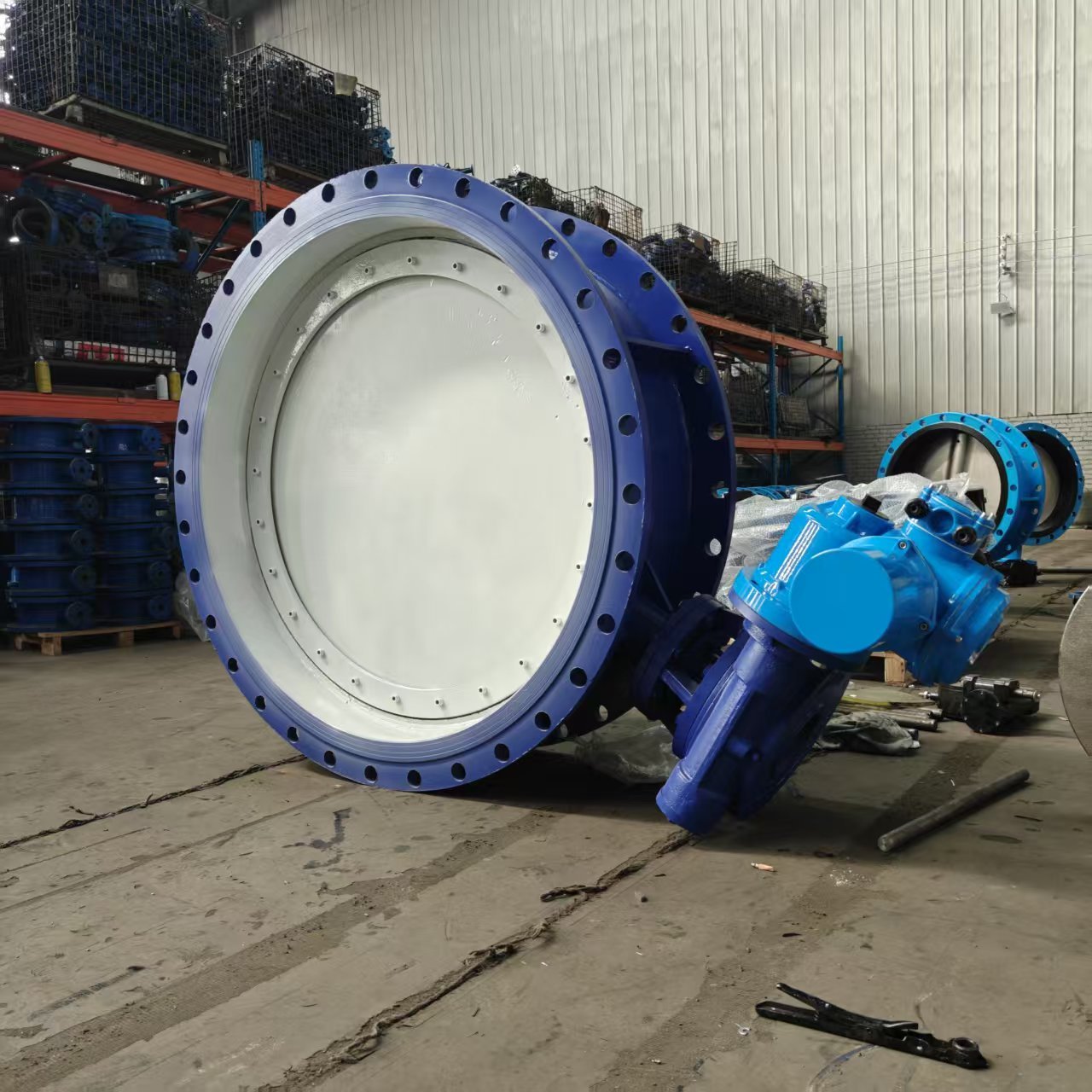

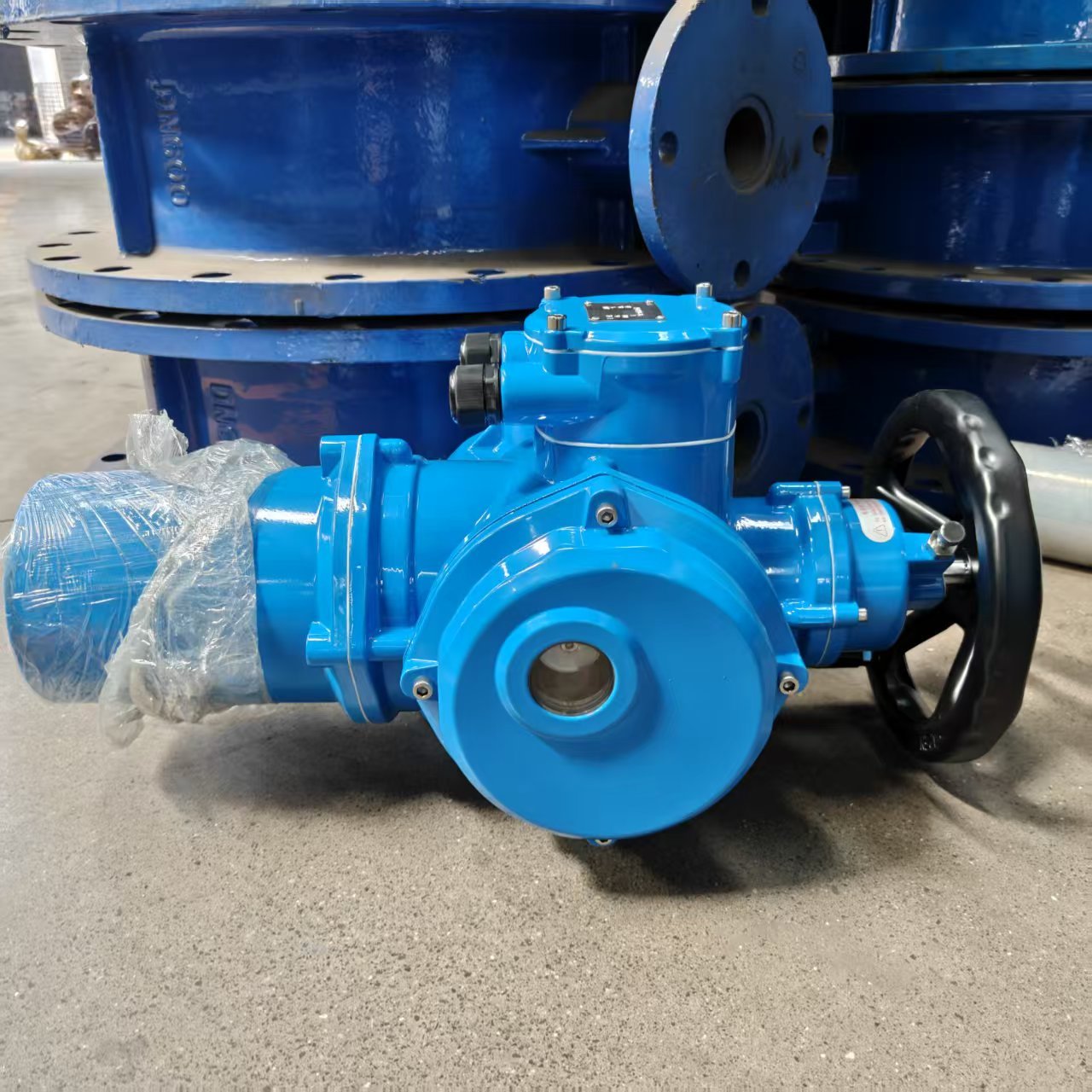

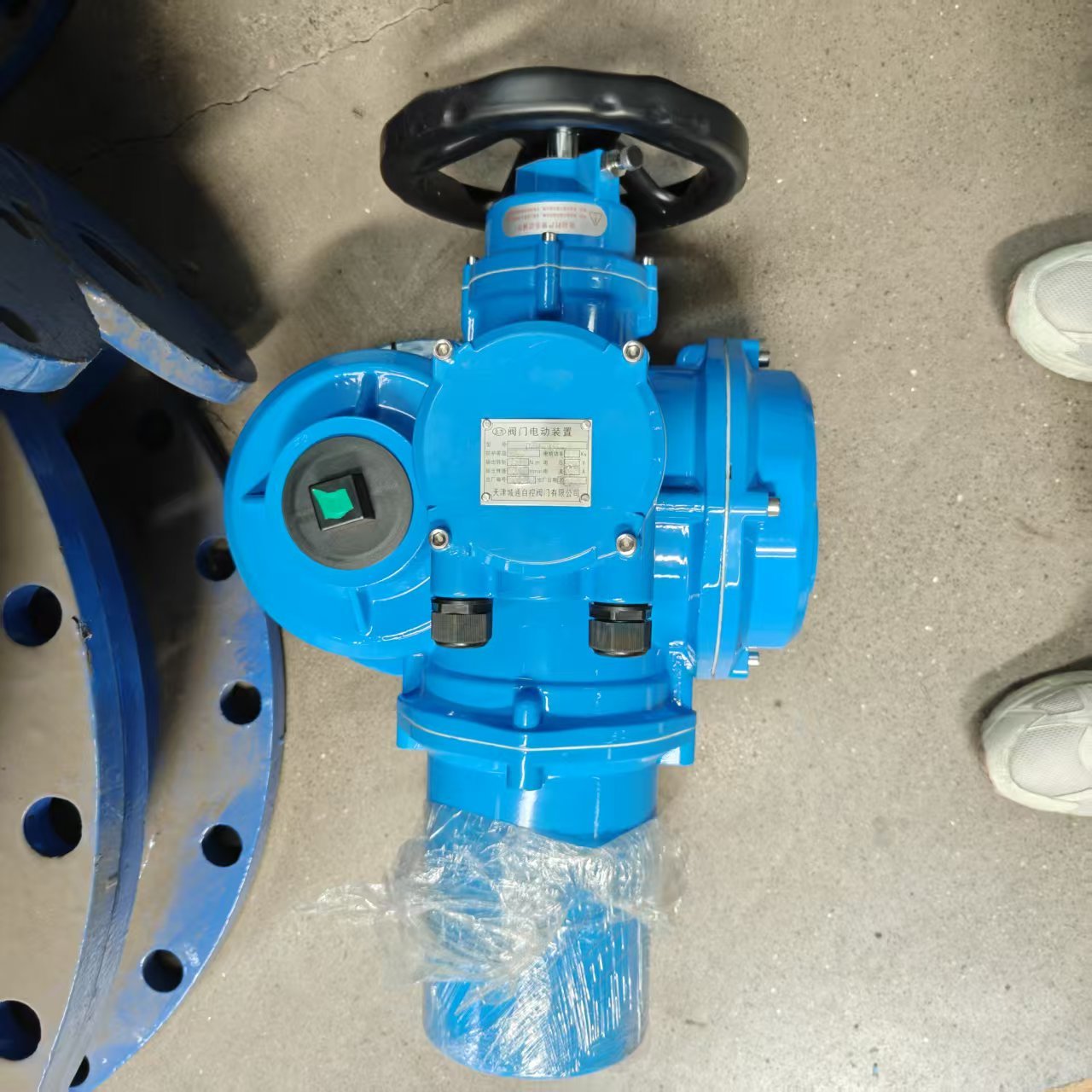

On/off or modulating 4-20mA electric actuator with torque switch, heater, and manual override for reliable remote operation.

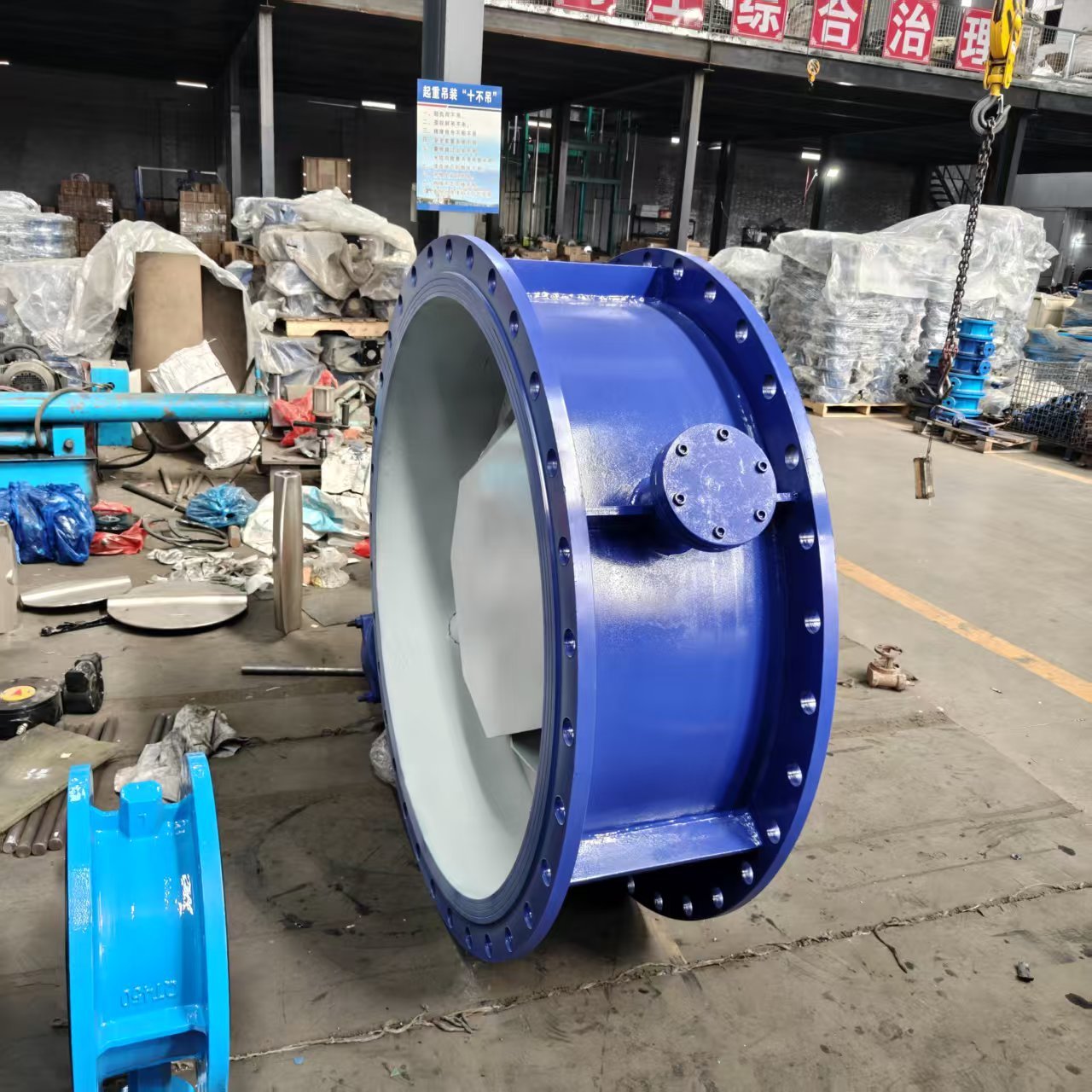

Double Flanged Design
Direct mounting between PN10/16, ANSI 150, and JIS 10K flanges; long service life and easy centering.
Corrosion Resistant Coating
Ductile iron body with epoxy coating (250μm) and stainless steel disc for water, air, and mild chemical service.
Replaceable Seat
EPDM, NBR, or Viton rubber seat can be replaced in-line, reducing maintenance downtime.

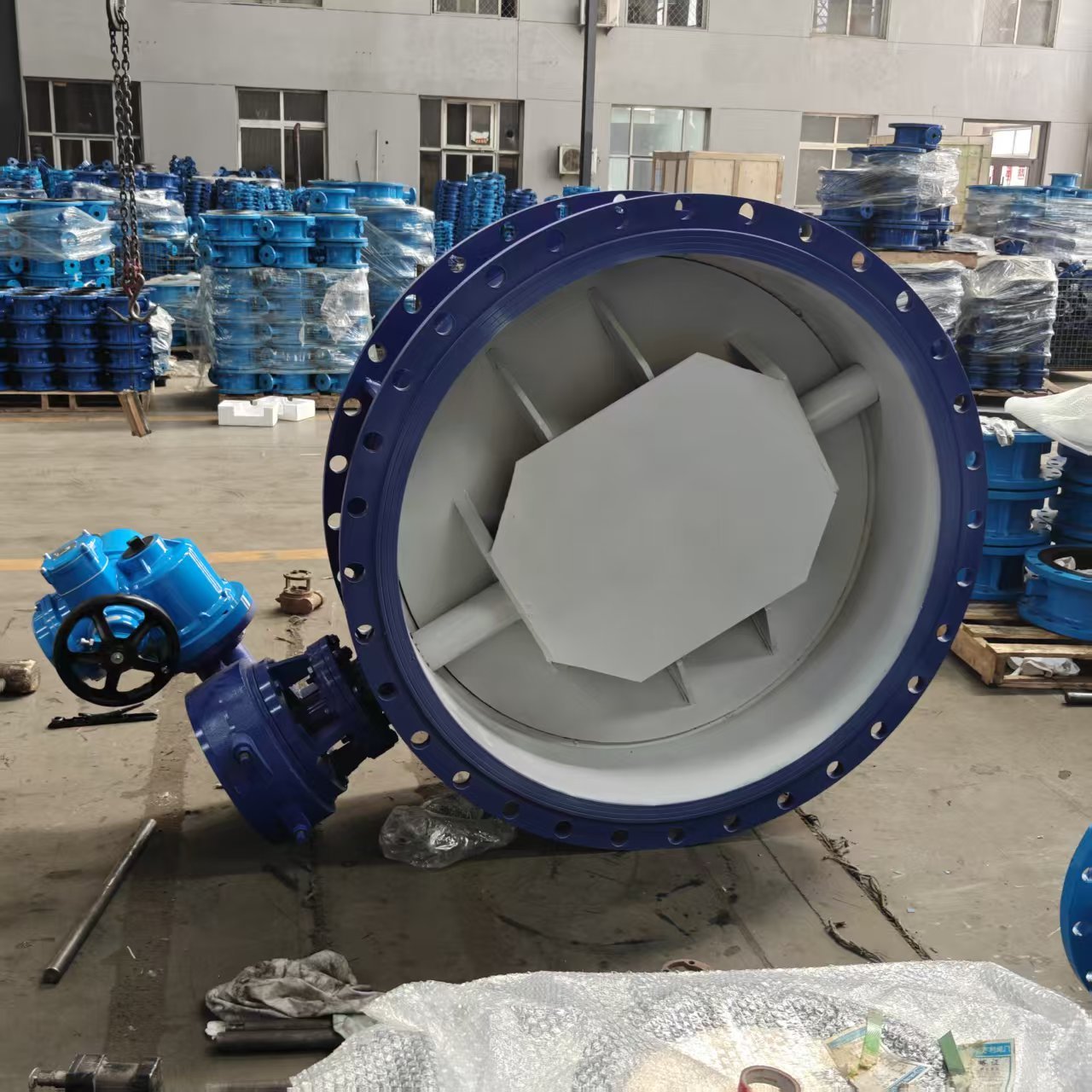

Manual Override

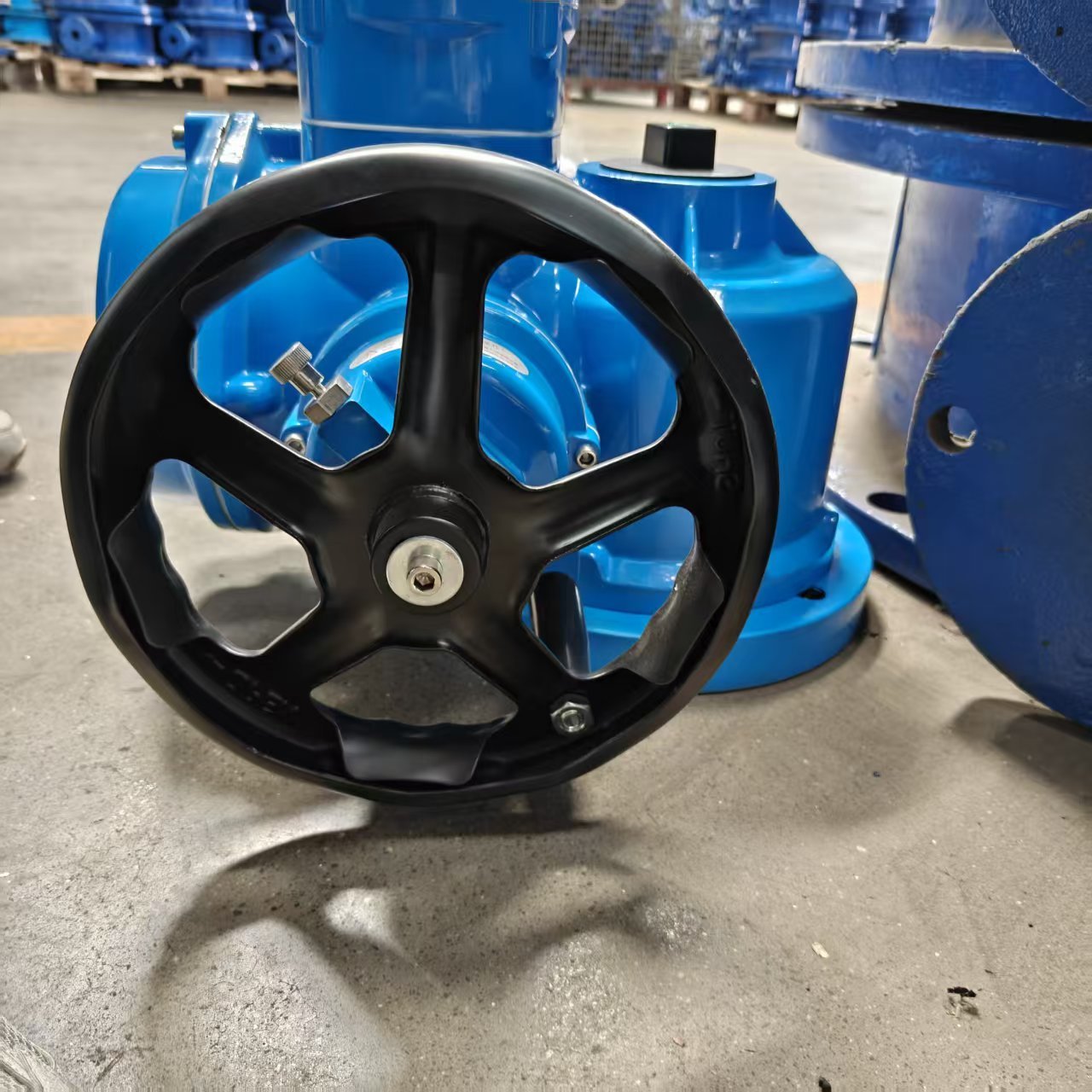

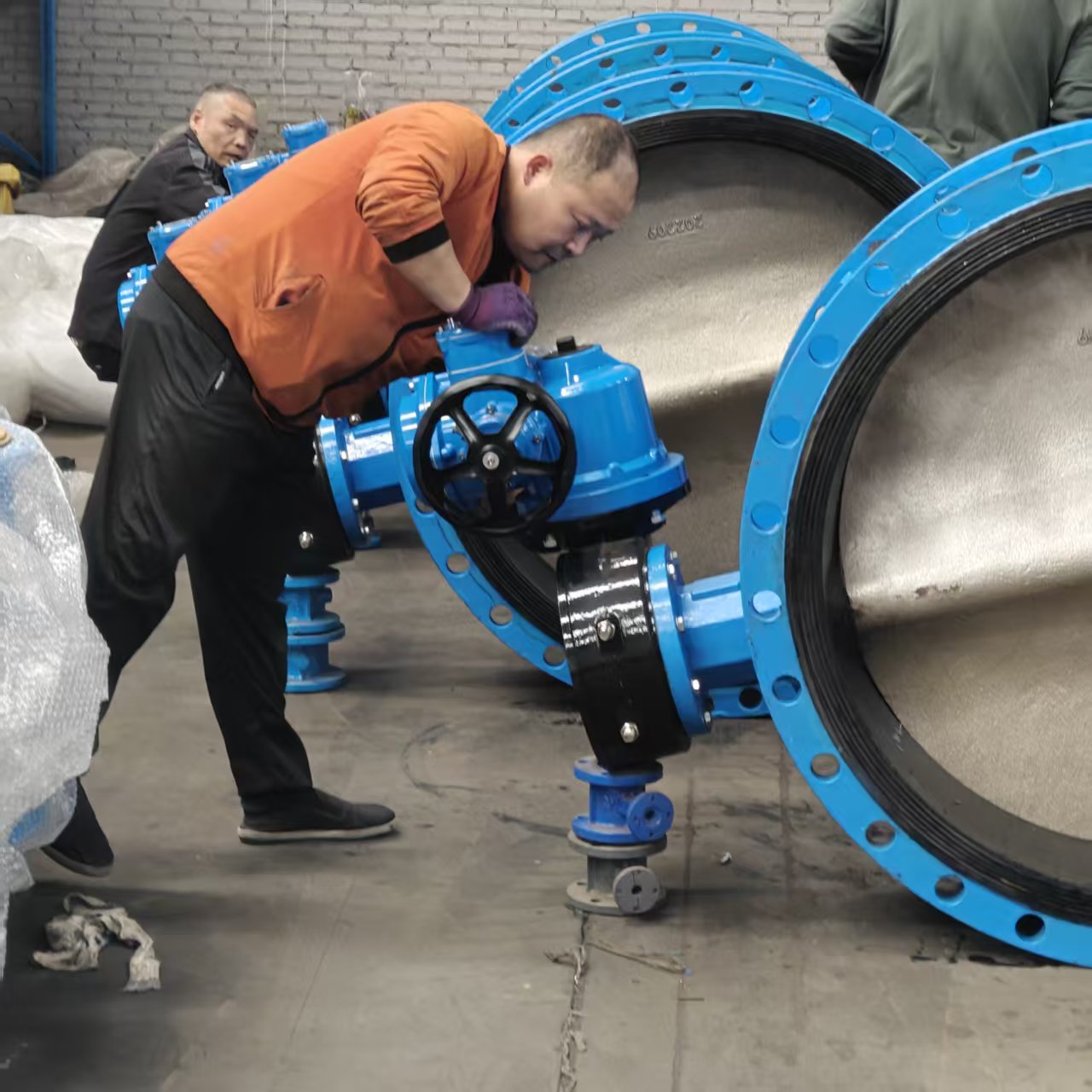

Handwheel allows local operation during power outage or commissioning without removing the actuator.

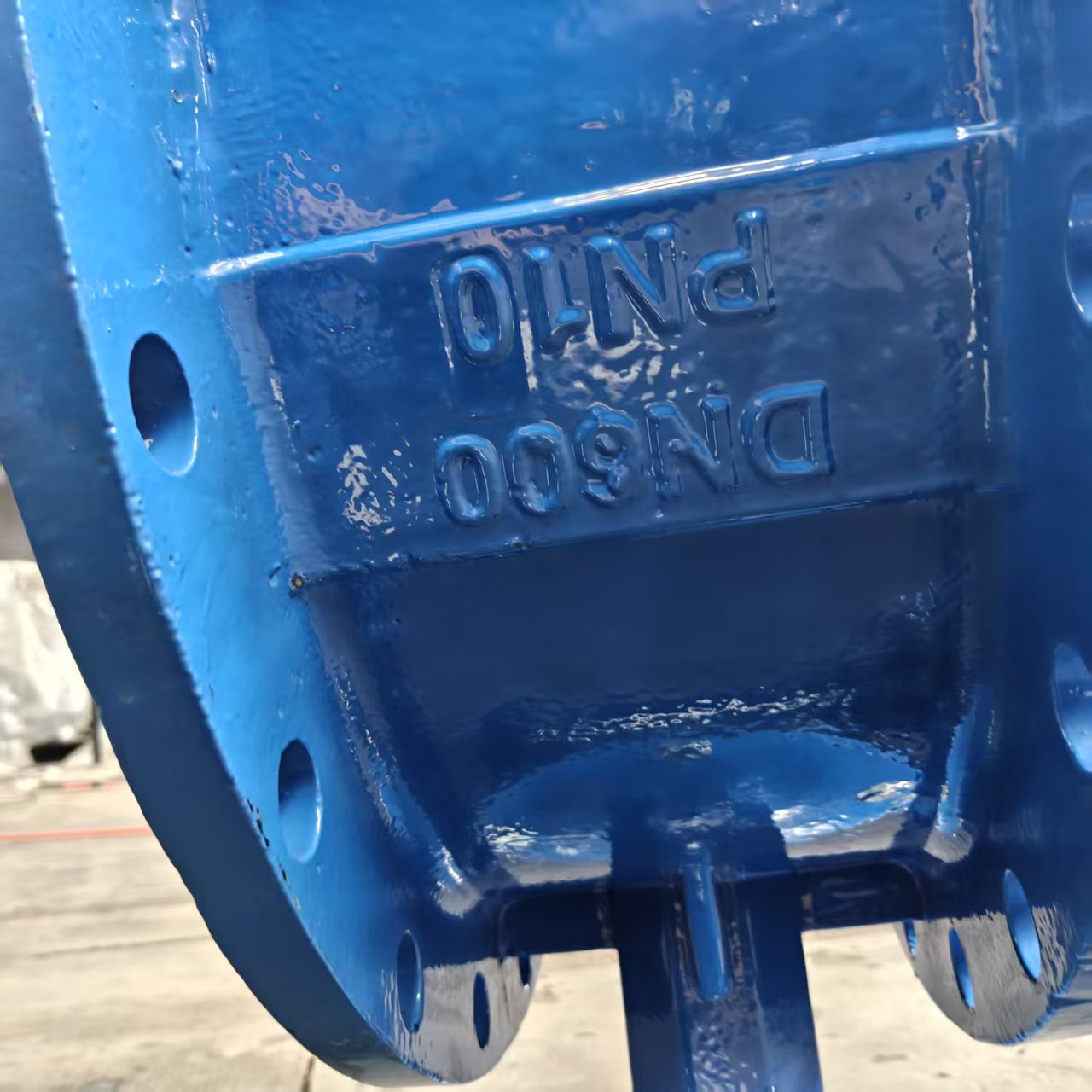

Wide Size Range
Available from DN50 to DN2000 with actuator sizing matched to torque and operating pressure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Body Material | Ductile Iron GGG50 (Epoxy Coated) / SS304 / SS316 on request |
| Disc Material | SS304 / SS316 / Ductile Iron Nickel-Al-Bronze Plated |
| Seat Material | EPDM (standard) / NBR / Viton / PTFE |
| Design Type | Concentric (Rubber-Lined) / Double-Eccentric for high pressure |
| Size Range | DN50 – DN2000 |
| Pressure Rating | PN10 / PN16 / ANSI 150 (other ratings on request) |
| End Connection | Double Flanged (ISO 5752 / BS 5155 / MSS SP-67) |
| Operation | Electric Actuator (24VDC / 110VAC / 220VAC / 380VAC) |
| Control Type | ON/OFF or Modulating 4-20mA with position feedback |
| Temperature | EPDM: −20→+120°C | NBR: −20→+82°C | Viton: −15→+200°C |
| Leakage Class | Class VI (Bubble-Tight) for rubber-lined |
| Standards | ISO 5752 / MSS SP-67 / BS 5155 / API 609 |
| Certification | ISO 9001:2015, SGS Material Test Certificate available |
Frequently Asked Questions
What is an electric actuated flanged butterfly valve used for?
An electric actuated flanged butterfly valve is used for remote on/off isolation and flow modulation in pipelines that require automation. Common applications include water treatment plants, HVAC systems, power generation, mining slurry lines, and industrial process control.
Can the electric actuator be supplied with a manual override?
Yes. Reguvale electric actuators are supplied with a handwheel for manual override in case of power failure or maintenance, allowing local operation even when the motor is de-energized.
What control signals are available for the electric actuator?
Standard actuators accept ON/OFF control (24VDC, 110VAC, 220VAC, 380VAC). Modulating 4-20mA input/output, position feedback, and bus-protocol options are available on request.
Applications & Use Cases
Water Treatment
Intake, distribution, filter backwash, and sludge lines.
HVAC & Building Services
Chilled water, cooling tower, and heating loop isolation.
Power Generation
Cooling water, condensate, and auxiliary systems.
Mining & Industrial
Slurry, tailings, and process water control with abrasion-resistant options.
