Flanged Butterfly Valve
Double Flanged · DN65–DN2000 · PN10/PN16/PN25 · Concentric Design
Reguvale's flanged butterfly valve is built with a concentric rubber-lined or PTFE-lined disc between two integral flanges, designed for direct bolting to pipe flanges in waterworks, HVAC, cooling water, power generation, and general industrial pipelines. The double-flanged body provides its own structural support, making installation and maintenance easier than wafer or lug designs.

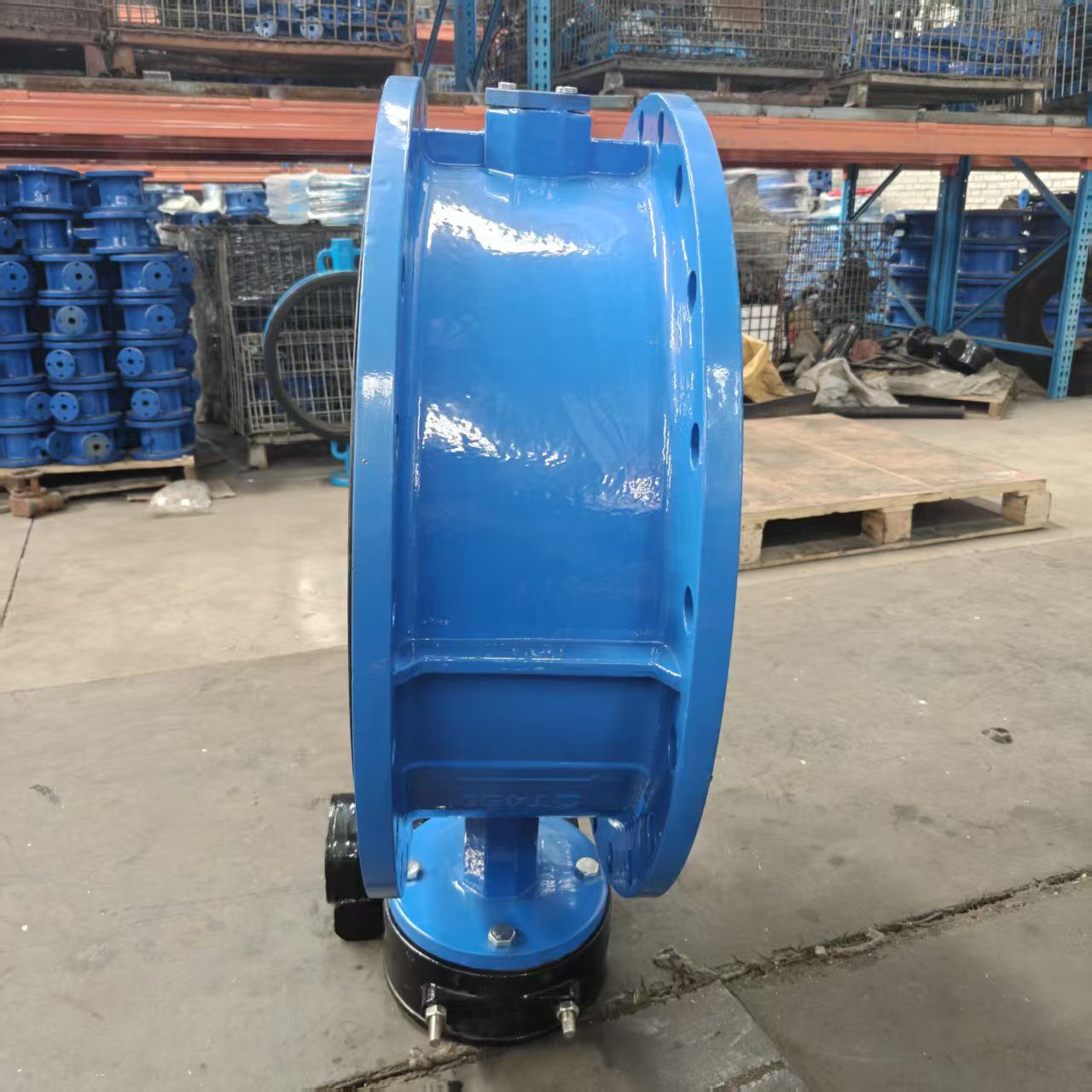

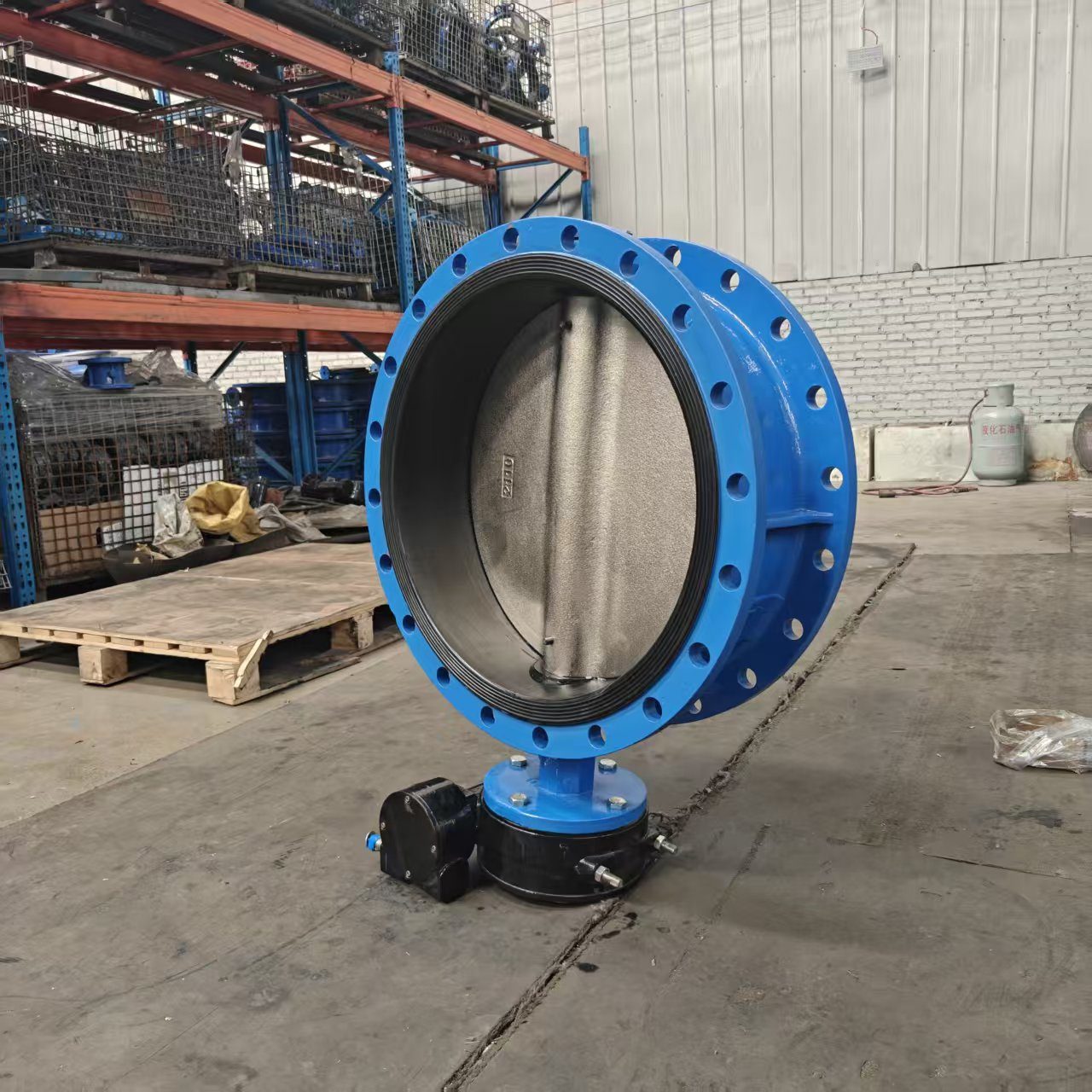

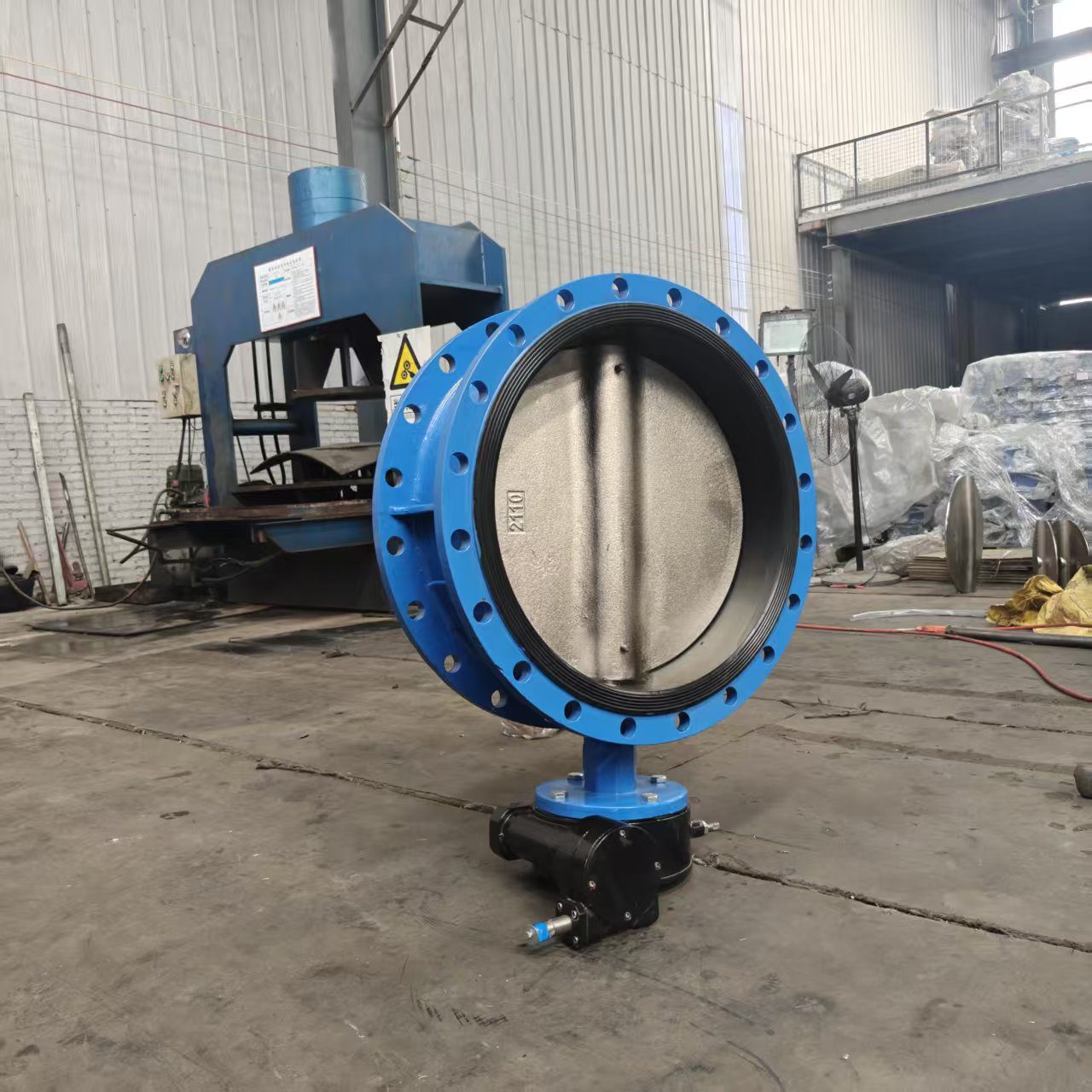

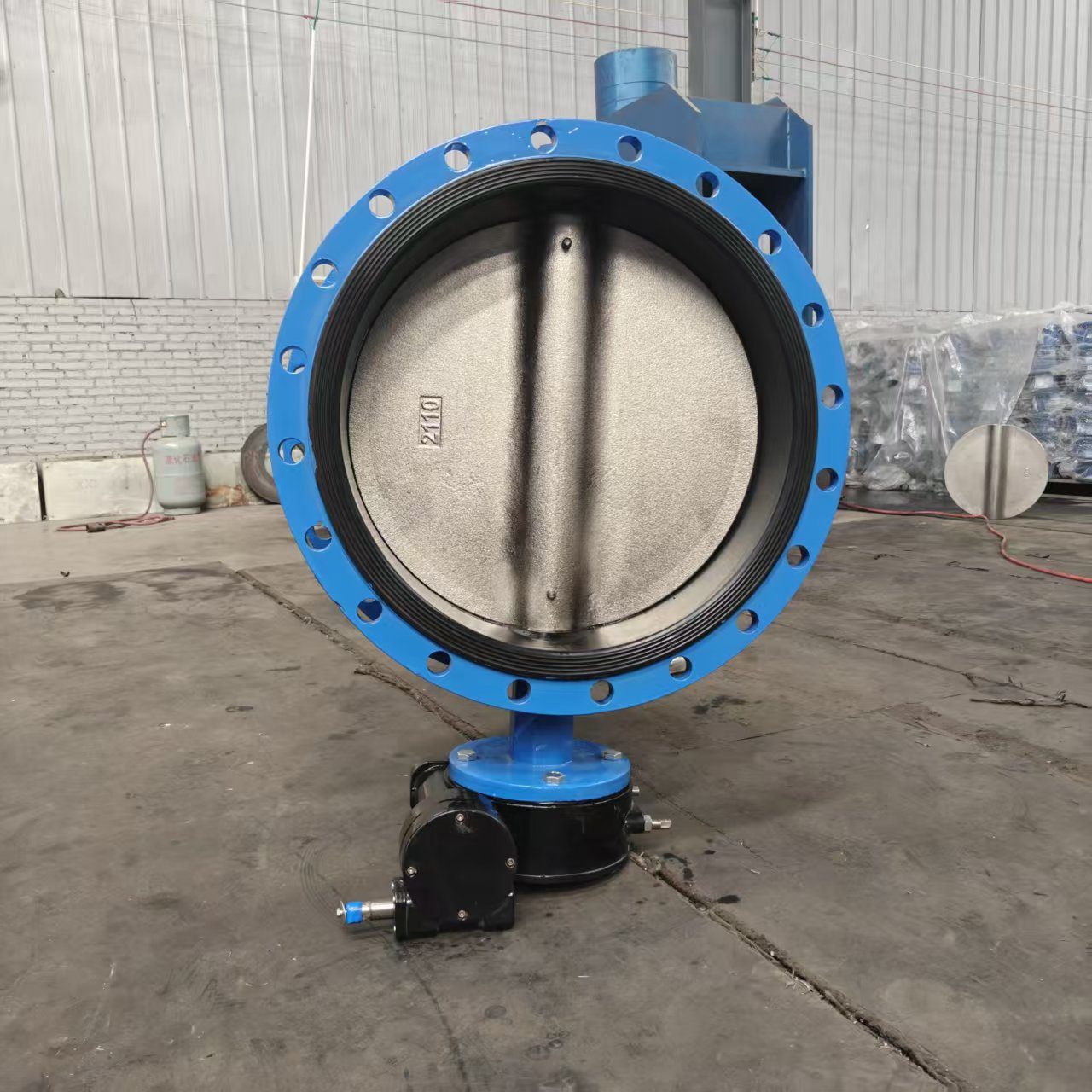

Standard construction uses a ductile iron body (epoxy coated RAL 5015) with a SS304 or SS316 disc and a replaceable EPDM, NBR, Viton or PTFE seat. Operation options include manual lever (small sizes), worm gear (as shown in the photos), electric actuator and pneumatic actuator. The photos show a DN600 PN10 unit with a worm gear operator ready for water distribution service.
Size range covers DN65–DN2000 with pressure ratings PN10, PN16 and PN25 selectable by project. All valves are pressure and function tested at our Tianjin factory, and material test certificates (MTC) are available on request.
Product Video
Key Features
Integral Double Flanges
Body has matching flanges on both ends for direct installation between pipe flanges; easier alignment and maintenance than wafer style.
Wide Size Range
From DN65 to DN2000 in one product family, covering small HVAC branches up to large water transmission and power plant lines.
Multiple Pressure Ratings
PN10, PN16 and PN25 options let you match the exact system pressure without over-specifying.
Replaceable Lined Seat
Concentric rubber or PTFE seat is bonded and replaceable, giving bubble-tight shutoff and long service life.
Flexible Actuation
Choose manual lever, worm gear, electric actuator or pneumatic actuator to match your operation and control requirements.
Corrosion-Resistant Coating
Ductile iron bodies receive an epoxy coating (RAL 5015 blue standard) for protection in water and outdoor environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Body Material | Ductile Iron GGG50 (Epoxy Coated) / SS304 / SS316 |
| Disc Material | SS304 / SS316 / Ductile Iron Nickel-Al-Bronze Plated |
| Seat Material | EPDM / NBR / Viton(FKM) / PTFE |
| Design Type | Concentric (Rubber-Lined / PTFE-Lined) |
| Size Range | DN65 – DN2000 (2.5" – 80") |
| Pressure Rating | PN10 / PN16 / PN25 |
| End Connection | Double Flanged (ISO 7005-2 / EN 1092-2 / ASME B16.5) |
| Face-to-Face | ISO 5752 / EN 558 / API 609 |
| Operator | Lever (DN65–DN200) / Worm Gear / Electric / Pneumatic |
| Temperature | EPDM: −20→+120°C | NBR: −20→+82°C | Viton: −15→+200°C | PTFE: −200→+200°C |
| Leakage Class | Class VI (Bubble-Tight) for rubber-lined |
| Standards | ISO 5752 / BS 5155 / MSS SP-67 / API 609 |
| Certification | ISO 9001:2015, SGS Material Test Certificate available |
Frequently Asked Questions
What is the difference between a flanged and a wafer butterfly valve?
Flanged: The valve body has integral flanges on both ends that bolt directly to pipe flanges. It is stronger, easier to align, and can be used for dead-end or end-of-line service.
Wafer: The body is sandwiched between two pipe flanges with through-bolts. It is lighter and more compact, but one side of the pipe must stay bolted to support the valve.
Common questions about flanged butterfly valves answered by our engineering team.
Which pressure rating do I need: PN10, PN16 or PN25?
PN10: 10 bar rating for water, HVAC and general low-pressure service.
PN16: 16 bar rating for higher-pressure waterworks, chilled water and industrial lines.
PN25: 25 bar rating for power plants, marine and high-pressure process applications.
Can flanged butterfly valves be used for dead-end service?
Yes. Because the valve body has its own flanges, it can be installed at the end of a line or where one side of the pipe may need to be removed for maintenance. Specify a lug or flanged body for dead-end service; do not use a wafer body for this application.
What seat and disc materials are available?
EPDM: Water, air and weak chemicals up to +120°C. Most common.
NBR: Oils, fuels and petroleum products.
Viton/FKM: Aggressive chemicals and temperatures up to +200°C.
PTFE: Near-universal chemical resistance for corrosive acids and bases.
Discs are typically SS304 or SS316; ductile iron nickel-aluminium-bronze plated is available for seawater and abrasive media.
Applications & Use Cases
Waterworks & Distribution
Transmission mains, pumping stations, treatment plants and distribution networks.
HVAC & Chilled Water
Cooling towers, chillers, air-handling units and district heating/cooling.
Power Generation
Cooling water, condensate and auxiliary systems in thermal and renewable plants.
Industrial Process
General isolation and flow control for water, air and compatible chemicals.
Related Products
Pneumatic Flanged Butterfly Valves
Double Flanged · Actuated
Wafer Butterfly Valves
Manual Wafer · DN50-DN300

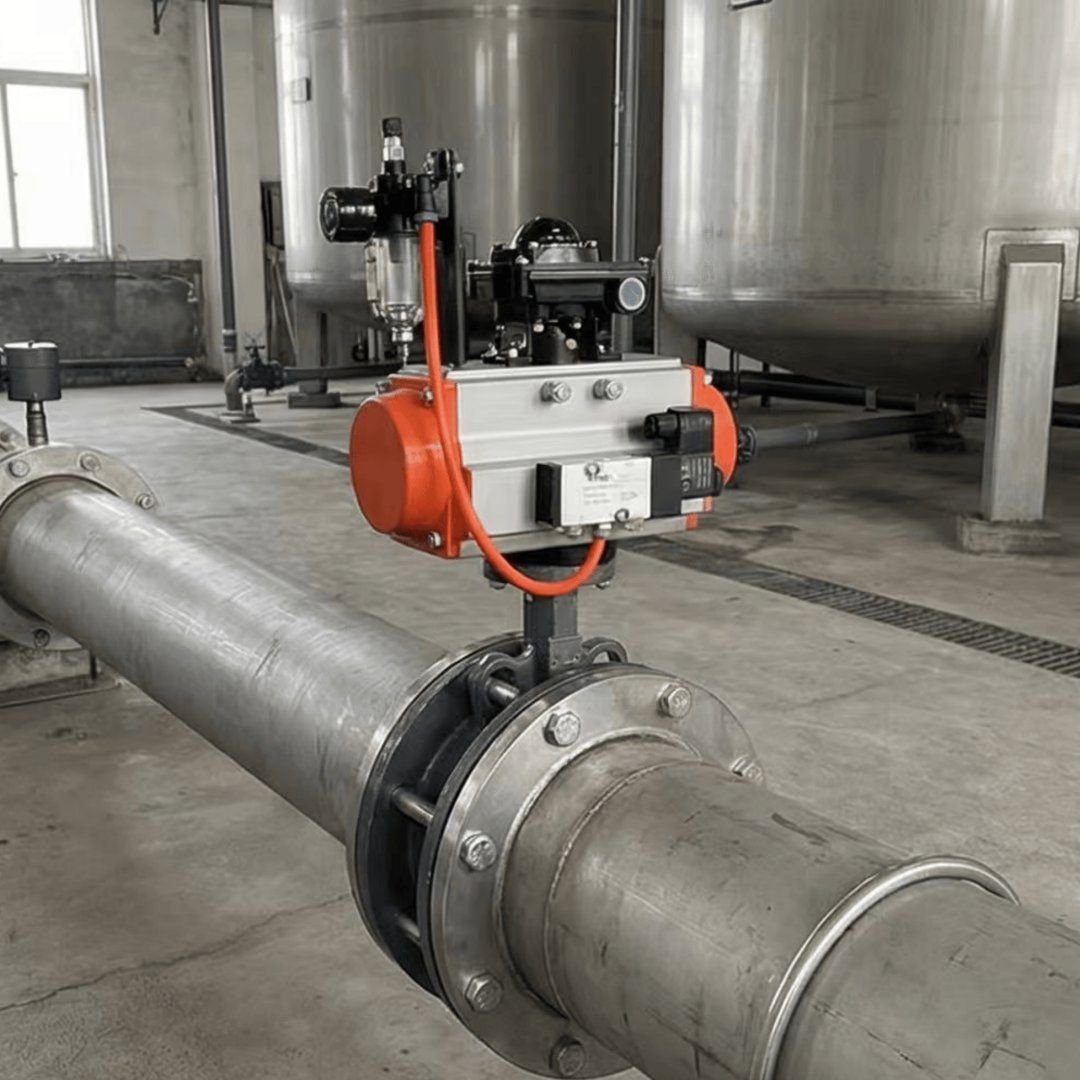

Pneumatic Wafer Butterfly Valves
